(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon E3-1230 v6 3.5GHz, 8M cache, 4C/8T, turbo (72W)
1 x 8GB PC4-19200 ECC 2400 MHz Unbuffered DIMMs
None HDD Support 4 x 3.5
2 x PCIe 3.0 slots: x16 slot, full height (1x8 PCIe 3.0)
1GBE Dual Port (BCM5720 GbE LOM)
PERC H330 RAID Controller
DVD+/-RW, SATA, Internal
Single, Cabled Power Supply, 250W

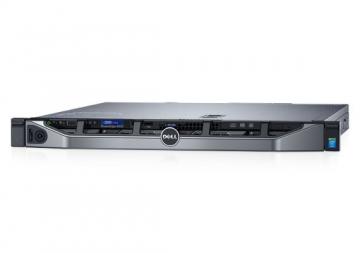

MÀY CHỦ DELL POWEREDGE R230 E3 1230v6 4x3.5 Hotplug
Form Factor: Rack 1U
Processor: Intel Xeon E3-1230 v6 3.5GHz, 8M cache, 4C/8T, turbo (72W)
Memory: 1 x 8GB PC4-19200 ECC 2400 MHz Unbuffered DIMMs
Network Controller:PERC H330 RAID Controller
Raid Controller: Dell Controller PERC S130 Raid Onboard
Hard Drive: None HDD
Support 4 x 3.5" hot-swap or 2.5" hot-swap in hybrid drive carrier
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: 2 x PCIe 3.0 slots: x16 slot, full height (1x8 PCIe 3.0)+ x8 slot, low profile (1x4 PCIe 3.0)
Remote management :iDRAC8, Basic
Power Supply: Single, Cabled Power Supply, 250W
Tech Specs & Customization
Processor
1 Processor From The Following Product Families:
Intel® Xeon® Processor E3-1200 V6 Product Family
Intel Pentium®
Intel Core I3®
Intel Celeron®
Operating System
Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, X64
Microsoft® Windows Server® 2016
Red Hat® Enterprise Linux®
Vmware Vsphere® Esxi®
Suse® Linux Enterprise Server®
Chassis
2 X 3.5" Cabled Hdd 19.5" 1U Chassis
4 X 3.5" Cabled Hdd 19.5" 1U Chassis
4 X 3.5" Hot-Plug Hdd 19.5" 1U Chassis
Chipset
Intel C236
Communications
2 X 1gbe Lom
Dimensions & Weight
Depth Without Bezel: 495.0 Mm (19.5 In)
Depth With Bezel: 551.3 Mm (21.7 In)
Height: 42.8 Mm (1.68 In)
Width Without Rack Latches: 434.0 Mm (17.08 In)
Width With Rack Latches: 482.4 Mm (18.99 In)
Drive Bays
2 X 3.5" Cabled Hdd
4 X 3.5" Cabled Hdd
4 X 3.5" Hot Swap Or 2.5" Hot Swap In Hybrid Drive Carrier
Device Access
5 Total Usb:
Rear: 2 X Usb 3.0 Ports
Front: 2 X Usb 2.0 Ports
Internal: 1 X Usb 3.0 Port
Embedded Hypervisor (Optional)
Hypervisor Support
Microsoft Windows Server With Hyper-V®
Vmware® Vsphere® Esxi®
Memory*
Architecture: Up To 2400mt/S Ddr4 Dimms
Memory Type: Udimms
Memory Module Sockets: 4
Maximum Ram: Up To 64gb
Management
Systems Management:
Ipmi 2.0 Compliant
Dell Openmanage Essentials
Dell Openmanage Mobile
Dell Openmanage Power Center
Dell Openmanage Integrations:
Dell Openmanage Integration Suite For Microsoft System Center
Dell Openmanage Integration For Vmware Vcenter™
Dell Openmanage Connections:
Hp Operations Manager, Ibm Tivoli® Netcool® And Ca
Network And Systems Management
Dell Openmanage Plug-In For Oracle® Database Manager
Remote Management:
Idrac8 With Lifecycle Controller, Idrac8 Express (Default),
Idrac8 Enterprise (Upgrade), 8gb Vflash Media (Upgrade),16gb Vflash Media (Upgrade)
Network Controller
Broadcom® Bcm5720
Power
250w Cabled Psu
Rack Support
Readyrails™ Static Rails For Tool-Less Mounting In 4-Post Racks With Square Or Unthreaded Round Holes Or Tooled Mounting In 4-Post Threaded And 2-Post Racks.
Raid Controllers
S130, H330, H730, H830
Slots
2 X Pcie 3.0 Slots: X16 Slot, Full Height (1x8 Pcie 3.0)+ X8 Slot, Low Profile (1x4 Pcie 3.0)
Storage
2.5” Sata 7.2k
2.5” Nearline Sas 7.2k
2.5” 10k Sas Hdds
2.5” 15k Sas Hdds
2.5” Sata Hdds
3.5” Enterprise Sata 7.2k Hdds
3.5” Nearline Sas 7.2k Hdds
3.5” 7.2k Sata Entry Drive
