Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon Silver 4114 10C 2.2GHz
1 x 16GB DDR4 2666Mhz ECC Registered DIMMs
Options Support Up to 4 x 3.5” HDD: SAS, SATA, Nearline SAS
Up to 2 x Gen 3 slots all x16
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID Controllers
DVD+/-RW, SATA, Internal
Redundant Power Supply (0+1), 550W

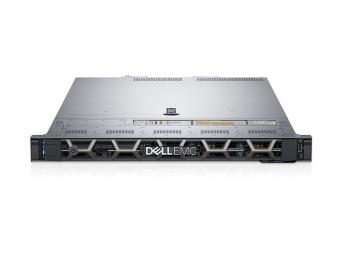

Máy chủ Dell PowerEdge R440 Server Rack 1U
1 x Intel Xeon Silver 4114 10C 2.2GHz
1 x 16GB DDR4 2666Mhz ECC Registered DIMMs
Options Support Up to 8 x 2.5” HDD: SAS, SATA, Nearline SAS
PERC H330 RAID Controllers
Up to 2 x Gen 3 slots all x16
On-Board Broadcom 5720 Dual Port 1Gb LOM
iDRAC9 Enterprise with Lifecycle Controller
DVD+/-RW, SATA, Internal
Redundant Power Supply (0+1), 550W
PowerEdge R440 Tech Specs & Customization
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 22 cores per processor
Bezel
Optional LCD bezel or security bezel
Dimensions & Weight
Height
42.8mm (1.68")
Width
482mm (18.97")
Depth
728.2mm (28.7")
Weight
17.6kg (38.9lbs.)
Drive Bays
Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 4 NVMe SSD max 48TB or up to 4 x 3.5 SAS/SATA HDD max 56TB
Optional DVD-ROM, DVD+RW
Embedded Management
IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional
Fans
Hot plug power supplies with full redundancy option
I/O and Ports
Network Options
2 x 1GbE LOM
(optional) LOM Riser 2 x 1GE,
2 x 10GbE SFP, or
2 x 10GbE BaseT
Front Ports
1 x Dedicated iDRAC direct USB
1 x USB 2.0
1 x USB 3.0 (optional)
1 x Video
Rear Ports
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
Memory*
DIMM Speed
Up to 2666 MT/s
Memory Type
RDIMM
LRDIMM
Memory Module Slots
16 DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 512GB
LRDIMM 1TB*
Management
Embedded / At-the-Server
iDRAC9 with Lifecycle Controller
iDRAC Direct
iDRAC RESTful API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
OpenManage Server Administrator
iDRAC Service Module
OpenManage Integrations
BMC Truesight
Microsoft® System Center
Red Hat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
OpenManage Software
OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
Power Supplies
Bronze 450W, Platinum 550W
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Supported Operating Systems
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Storage Controllers
Internal Controllers
PERC H330, H730P, H740P, HBA330
Software RAID
S140
External HBAs (non-RAID)
12Gbps SAS HBA
External PERC (RAID)
H840
Boot Optimized Storage Subsystem
HWRAID 2 x M.2 SSDs 120GB or 240GB
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
450W Bronze
550W Platinum
Hot plug power supplies with full redundancy option
Up to six fans
Form Factor
1U Rack Server
Slots
PCie
2 x Gen 3 slots all x16
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
600GB 10K RPM SAS 12Gbps 512n 2.5 Hot-plug Hard Drive
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R (bộ nhớ đệm 13,75M, 2,40 GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hotplug
2 x Gen3 slots all x16
2 x 1GbE LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
Intel Xeon Silver 4214 Processor (16.5M Cache, 2.20 GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
600B 10K RPM SAS 12Gbps 512n 2.5 inch Hotplug
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW, SATA, Internal
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5 Inch Hotplug
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW, SATA, Internal
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4214 Processor (16.5M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
600GB 10k RPM SAS 12Gbps 512n 2,5 Hotplug
iDRAC9 Ent
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2,5in Hot-plug
iDRAC9 Ent
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
