Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon E-2134 3.5Ghz
Dell 8GB 2666 DDR4 Ecc Unbuffered DIMMs
Dell 1TB 3.5" SATA cabled Support 4 x 3.5" cabled HDD
2 slots PCIe Gen 3.0 slots
BC5720DP On-Board LOM 1GBE Dual Port
PERC S140 Raid Onboard
DVD+/-RW Internal
250W Power

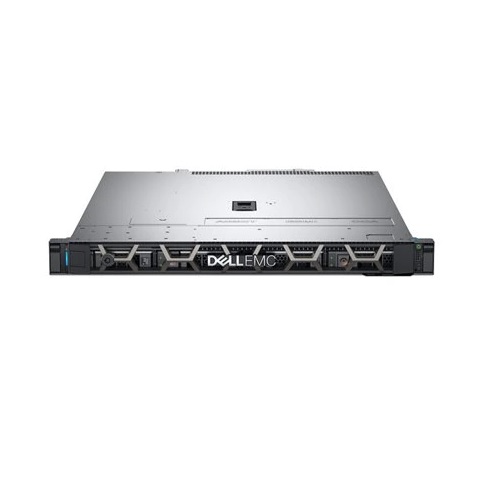

PowerEdge R240 Rack Server E-2134 4x3.5 8GB
Form Factor: Rack 1U
Processor: Intel Xeon E-2134 3.5Ghz
Memory: Dell 8GB 2666 DDR4 Ecc Unbuffered DIMMs
Hard Drive: Dell 1TB 3.5" SATA cabled Support 4 x 3.5" cabled HDD
Network Controller: BC5720DP On-Board LOM 1GBE Dual Port
Raid Controller: PERC S140 Raid Onboard
Remote management :iDRAC9, Basic
Optical Drive: DVD+/-RW Internal
PCI Slots: 2 slots PCIe Gen 3.0 slots
Power Supply: 250W Power
PowerEdge R240 Rack Server Tech Specs & Customization
Processor
· Up to one Intel® Xeon® E-2100 product family processor with up to 6 cores per processor
· Up to one Intel® Pentium® G5500 processor up to 2 cores per processor
· Up to one Intel® Core i3® 8100 processor up to 4 cores per processor
· Up to one Intel® Celeron® G4900 processor up to 2 cores per processor
Bezel Optional LCD bezel or security bezel
Memory DIMM Speed Up to 2666MT/s
Memory Type UDIMMs
Memory Module Slots 4 DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM UDIMM 64GB
Power Supplies 250W Bronze
Supported Operating Systems
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft® Windows Server® LTSC with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Storage Controllers I Internal Controllers
PERC H330, H730p, HBA330
Software RAID S140
External HBAs (non-RAID) 12 Gbps SAS HBA
Boot Optimized Storage Subsystem
2 x M.2 240GB (RAID 1 or No RAID)
1 x M.2 240GB (No RAID only)
Rack Support ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution.
Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Regulatory
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Storage Front Bays
Up to 4 x 3.5 hot-plug SAS/ SATA/SSD
Up to 4 x 3.5 cabled SAS/ SATA/SSD
Up to 2 x 3.5 cabled SAS/SATA/ SSD
Max 56TB for 4 HDD configuration
Security TPM 1.2/2.0, TCM 2.0 optional
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
System Lockdown (requires OpenManage Enterprise)
Secure Erase
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
I/O and Ports
Network Options
2 x 1GbE LOM
Front Ports
1 x Dedicated iDRAC direct micro-USB
1 x USB 2.0
Rear Ports
1 x Serial
2 x USB 3.0
1 x VGA
Internal Ports 1 x USB 3.0
Slots Pcie 2 x PCIe Gen3 slots
Form Factor 1U Rack Server
Dimensions & Weight Height 42.8mm (17.1")
Width 434.0mm (17.1")
Depth 595.6mm (23.5") (3.5” HHD config)
Weight 12.2kg (29.9lbs.) Dimensions do not include bezel
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
600GB 10K RPM SAS 12Gbps 512n 2.5 Hot-plug Hard Drive
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R (bộ nhớ đệm 13,75M, 2,40 GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hotplug
2 x Gen3 slots all x16
2 x 1GbE LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
Intel Xeon Silver 4214 Processor (16.5M Cache, 2.20 GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
600B 10K RPM SAS 12Gbps 512n 2.5 inch Hotplug
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW, SATA, Internal
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5 Inch Hotplug
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW, SATA, Internal
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4214 Processor (16.5M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
600GB 10k RPM SAS 12Gbps 512n 2,5 Hotplug
iDRAC9 Ent
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2,5in Hot-plug
iDRAC9 Ent
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
