Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon E3-1240 v6 3.7GHz, 8M cache, 4C/8T, turbo (72W)
1 x 8GB PC4-19200 ECC 2400 MHz Unbuffered DIMMs
Support Up to 8 x 2.5" hot-swap HDD
2 x PCIe 3.0 slots , 1 slot for internal storage
1GBE Dual Port (BCM5720 GbE LOM)
On-Board LOM 1GBE Dual Port (BCM5720 GbE LOM)
DVD+/-RW, SATA, Internal
Single, Cabled Power Supply, 250W

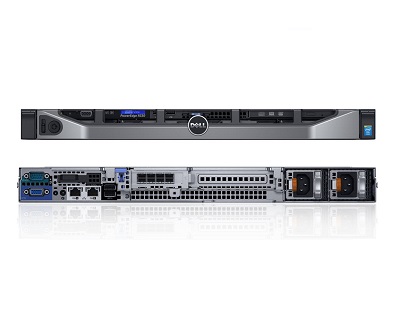

MÁY CHỦ DELL POWEREDGE R330 - E3-1240 v6
Form Factor: Rack 1U
Processor: Intel Xeon E3-1240 v6 3.7GHz, 8M cache, 4C/8T, turbo (72W)
Memory: 1 x 8GB PC4-19200 ECC 2400 MHz Unbuffered DIMMs
Network Controller: On-Board LOM 1GBE Dual Port (BCM5720 GbE LOM)
Raid Controller: Dell Perc H330 SAS 12Gbp/s Adapter PCI-Express
Hard Drive: Support Up to 8 x 2.5" hot-swap HDD
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: 2 x PCIe 3.0 slots + 1 slot for internal storage
Remote management :iDRAC8, Basic
Power Supply: Single, Hot-plug Power Supply, 350W
Tech Specs & Customization
Processor
· 1 processor from the following product families:
· Intel® Xeon® processor E3-1200 v6 product family
· Intel Pentium®
· Intel Core i3®
· Intel Celeron®
Operating System
· Microsoft® Windows Server® 2012
· Microsoft Windows Server 2012 R2, x64
· Microsoft® Windows Server® 2016
· Red Hat® Enterprise Linux®
· VMware Vsphere® ESXi®
· SUSE® Linux Enterprise Server®
Availability
· Hot-swap 3.5” front access hard drives
· Hot-swap 2.5” front access hard drives
· Hot-plug power supply units (PSU’s)
Chassis: 1U rack server
Chipset: Intel C236
Communications
· Add-in network interface cards (NICs) and host bus adapters (HBAs)
· Broadcom dual and quad-port 1Gb Base-T adapter
· Intel dual and quad-port 1Gb Base-T adapter
· Qlogic Quark dual-port 10Gb SFP+ and Base-T adapter
· Fiber Channel HBAs
Emulex 8Gb
Dimensions & Weight: The dimensions below are without bezel and without redundant PSU:
· Width: 17.08 in / 434.00 mm
· Height: 1.68 in / 42.80 mm
· Depth: 24.60 in / 625.00 mm
· Memory*
· Architecture: Up to 2400MT/s DDR4 DIMMs
· Memory Type: UDIMMs
· Memory Module Sockets: 4
· Maximum RAM: Up to 64GB
Management
Systems management:
• IPMI 2.0 compliant
• Dell OpenManage Essentials
• Dell OpenManage Mobile
• Dell OpenManage Power Center
Dell OpenManage Integrations:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
• HP Operations Manager
• IBM Tivoli® Netcool®
• CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle® Database Manager
Remote management:
• iDRAC8 with Lifecycle Controller
• iDRAC8 Express (default)
• iDRAC8 Enterprise (upgrade)
• 8GB vFlash media (upgrade)
• 16GB vFlash media (upgrade)
Network Controller:2 x 1GbE
Power:Up to 2 x 350W hot plug redundant power supplies
Rack Support
· ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
RAID Controllers
· RAID Controllers: PERC S130, PERC H330, PERC H730, PERC H830
· Regulatory
· Product Safety, EMC and Environmental Datasheets
· Dell Regulatory Compliance Home Page
· Dell and the Environment
Slots: 2 x PCIe 3.0 slots + 1 slot for internal storage
USB Port: 5 total: 2 front; 2 rear; 1 internal
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
600GB 10K RPM SAS 12Gbps 512n 2.5 Hot-plug Hard Drive
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R (bộ nhớ đệm 13,75M, 2,40 GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hotplug
2 x Gen3 slots all x16
2 x 1GbE LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
Intel Xeon Silver 4214 Processor (16.5M Cache, 2.20 GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
600B 10K RPM SAS 12Gbps 512n 2.5 inch Hotplug
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW, SATA, Internal
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5 Inch Hotplug
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW, SATA, Internal
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4214 Processor (16.5M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
600GB 10k RPM SAS 12Gbps 512n 2,5 Hotplug
iDRAC9 Ent
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2,5in Hot-plug
iDRAC9 Ent
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
