Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel® Xeon E5-2609 v4 1.7GHz,20M Cache
1 x 8GB DDR4 ECC Registered DIMMs
None HDD Ent 3.5" Hotplug
2 PCIe 3.0 slots
On-Board Broadcom 5720 Quad Port 1Gb LOM
PERC H330 Mini/Adapter RAID Controllers
DVD+/-RW, SATA, Internal
Single, Hot-plug Power Supply (1+0), 550W

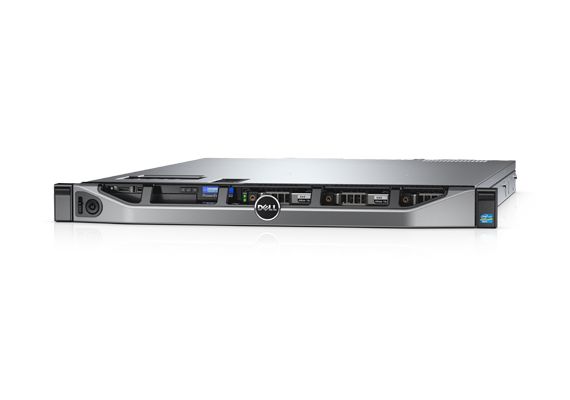

Máy Chủ Dell Poweredge R430
Form Factor: 1U rackmount
Processor: 1 x Intel® Xeon® E5-2609 v4 1.7GHz,20M Cache,6.4GT/s QPI,8C/8T (85W)
Memory: 1 x 8GB DDR4 ECC Registered DIMMs
Hard Drive: None HDD Ent 3.5" Hotplug
Support Up to 4 x 3.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Raid Controller: PERC H330 Mini/Adapter RAID Controllers
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: Support for up to 2 PCIe 3.0 slots
Network Controller: On-Board Broadcom 5720 Quad Port 1Gb LOM
Remote management : iDRAC8 Enterprise
Rail kit:Sliding Rails Rackmount 1U Kit
Power Supply: Single, Hot-plug Power Supply (1+0), 550W
Tech Specs & Customization
Processor
Intel® Xeon® processor E5-2600 v4 product family
Processor sockets: 2
Operating System
Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft® Windows Server® 2016
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
Availability
ECC memory
Single Device Data Correction (SDDC)
Spare Rank
Hot-plug hard drives
Hot-plug redundant power
iDRAC8 with Lifecycle Controller
Support for HA clustering
Virtualization-ready
Internal Dual SD Module (Failsafe Hypervisor)
TPM 1.2
Chassis
1U Rack
Chipset
Intel® C610 series chipset
Communications
Optional add-in NICs, HBAs
Drive Bays
Multiple R430 chassis available:
10 x 2.5" hot-plug drives
8 x 2.5” hot-plug drives
4 x 3.5” hot-plug drives
4 x 3.5” cabled drives
Memory
DDR4 DIMMs at up to 2133MT/s
Maximum RAM: Up to 384GB (12 DIMM slots): 2GB/4GB/8GB/16GB/32GB
Hypervisor Support
Citrix® XenServer®
Microsoft® Windows Server® 2008, with Hyper-V®
VMware® vSphere
Management
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)
16GB vFlash media (upgrade)
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft® System Center
Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
HP Operations Manager
IBM Tivoli® Netcool® and CA Network and Systems Management
Dell OpenManage
Network Controller
4 x 1GbE LOM
Power
450W, 550W PSU
RAID Controllers
Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830
Slots
2 PCIe 3.0
Storage
SAS, SATA, Nearlline SAS, SSD
Graphics Card
Video Type: Integrated Matrox G200 with iDRAC8
Video Memory: 16MB shared with iDRAC8 application memor
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
600GB 10K RPM SAS 12Gbps 512n 2.5 Hot-plug Hard Drive
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R (bộ nhớ đệm 13,75M, 2,40 GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hotplug
2 x Gen3 slots all x16
2 x 1GbE LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
Intel Xeon Silver 4214 Processor (16.5M Cache, 2.20 GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
600B 10K RPM SAS 12Gbps 512n 2.5 inch Hotplug
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW, SATA, Internal
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5 Inch Hotplug
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW, SATA, Internal
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4214 Processor (16.5M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
600GB 10k RPM SAS 12Gbps 512n 2,5 Hotplug
iDRAC9 Ent
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2,5in Hot-plug
iDRAC9 Ent
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
