(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon-Silver 4108 (1.8GHz/8-core/85W) Processor Kit
HPE 16GB DDR4-2666 Registered Memory Kit
None ship as standard 8 SFF SAS/SATA
2 PCIe slots (1 x16 FH / 1 x8 LP) Optional: 1 x16 FH or LP
Embedded 4x 1GbE with optional HPE FlexibleLOM
HPE Smart Array P408i-a SR Gen10
None included
HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

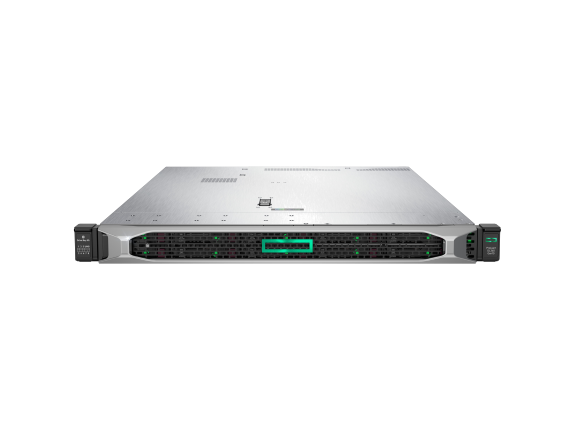

MÁY CHỦ HPE PROLIANT DL360 GEN10
Form Factor: Rack (1U)
Processor: 1 x Intel Xeon-Silver 4108 (1.8GHz/8-core/85W) Processor Kit
Memory: 1 x HPE 16GB DDR4-2666 Registered Memory Kit
Hard Drive: None ship as standard 8 SFF SAS/SATA
(Optional: up to 2 NVMe or 2 Dual uFF (4x M.2 cartridges)
Raid Controller: HPE Smart Array P408i-a SR Gen10
PCI-Express Slots: 2 PCIe slots (1 x16 FH / 1 x8 LP) Optional: 1 x16 FH or LP
Network Controller: Embedded 4x 1GbE with optional HPE FlexibleLOM and/or standup cards
Optical Drive : None included
Power Supply: 1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Management: HPE iLO 5
Rail Kit : SFF Easy Install w/o CMA
Specifications
Processor Type Intel
Processor Family Intel® Xeon® Scalable 8100/8200 series - Intel® Xeon® Scalable 3100/3200 series
Processor Name Intel
Processor Core Available 4 to 28 core, depending on model
Processor Cache Installed 8.25 - 38.50 MB L3, depending on processor
Processor Number 1 or 2
Processor Speed 3.8 GHz, maximum depending on processor
Maximum Memory 3.0 TB with 128 GB DDR4, 6.0 TB with HPE 512GB 2666 Persistent Memory Kit
Memory Type HPE DDR4 SmartMemory and HPE Persistent Memory, depending on model
Memory Slots 24 DIMM slots
NVDIMM Capacity 16 GB
Standard Memory 3.0 TB (24 X 128 GB) LRDIMM, 6.0 TB (12 X 512 GB) HPE Persistent Memory
NVDIMM Rank Single rank
NVDIMM Type HPE NVDIMM-N Only available on 1st Generation Intel® Xeon® Scalable Processors
Remote Management Software HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
Drive Supported4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 NVMe, 10 SFF SAS/SATA, 10 SFF NVMe, 1 SFF or 1 Dual UFF rear drive optional depending on model
Expansion Slots3, for detailed descriptions refer to the QuickSpecs
Storage Controller HPE Smart Array S100i and/or 1 HPE Essential or Performance RAID controller, depending on model
Network ControllerEmbedded 4 X 1GbE Ethernet Adapter and/or optional HPE FlexibleLOM, depending on model
Form Factor1U
System Fan Features Hot-plug redundant standard
SecurityOptional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Weight (metric) 13.04 kg minimum, 16.78 kg maximum
Weight (imperial) 28.74 lb minimum, 37 lb maximum
Product Dimensions (metric) SFF Chassis: 4.29 x 43.46 x 70.7 cm, LFF Chassis: 4.29 x 43.46 x 74.98 cm
Product Dimensions (imperial) SFF Chassis: 1.69 x 17.11 x 27.83 in, LFF Chassis: 1.69 x 17.11 x 29.5 in
