Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
HPE DL380 Gen10 4110 Xeon-S FIO Kit
HPE 16GB 1Rx4 PC4-2666V-R Smart Kit
8 SFF Chassis
3-slots (x8, x16, x8) as standard
HPE 1 Gb 331i Ethernet adapter 4-ports per controller
HPE Smart Array P408i-a SR Gen10
Optional via Universal Media Bay
1x 500W HPE FlexSlot Power Supply

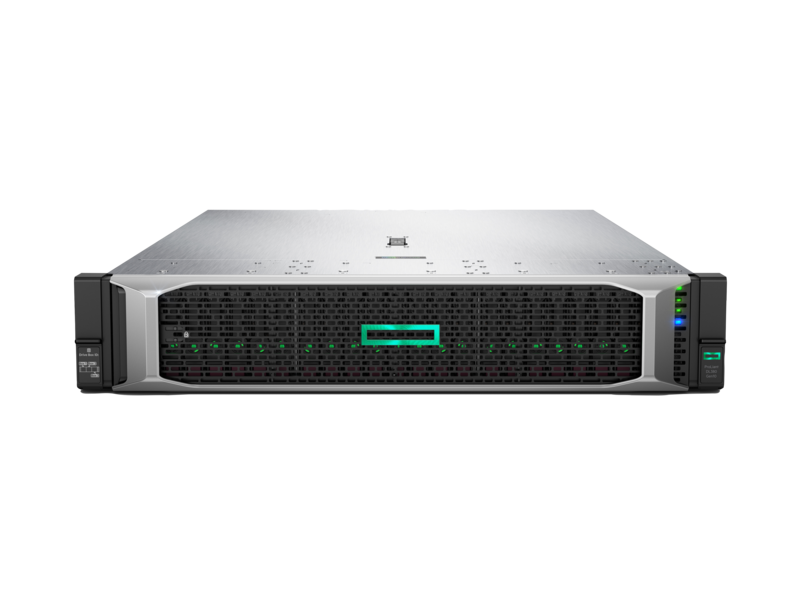

Máy Chủ Hpe Proliant Dl380 Gen10 - 868703-B21
Form Factor: Rack 2U
Processor: HPE DL380 Gen10 4110 Xeon-S FIO Kit
Memory: HPE 16GB 1Rx4 PC4-2666V-R Smart Kit
Hard Drive: None HDD 8 SFF Chassis (upgradeable to 24 SFF front)
Raid Controller: HPE Smart Array P408i-a SR Gen10
PCI-Express Slots: 3-slots (x8, x16, x8) as standard
Network Controller: HPE 1 Gb 331i Ethernet adapter 4-ports per controller
Optical Drive : Optional via Universal Media Bay
Power Supply: 1x 500W HPE FlexSlot Power Supply
Technical Specifications
Processor Type Intel Processor family
· Intel® Xeon® Scalable 8100/8200 series Intel® Xeon® Scalable 6100/6200 series Intel® Xeon® Scalable 5100/5200 series Intel® Xeon® Scalable 4100/4200 series Intel® Xeon® Scalable 3100/3200 series
· Processor core available 4 to 28 core, depending on model
· Processor cache 8.25 - 38.50 MB L3, depending on processor model
· Processor Name Intel
· Processor number 1 or 2
· Processor speed 3.8 GHz, maximum depending on processor
Maximum memory
· 3.0 TB with 128 GB DDR4, depending on processor model
· 6.0 TB with HPE 512GB 2666 Persistent Memory Kit, depending on processor model
· Memory slots 24 DIMM slots
· Memory type HPE DDR4 SmartMemory and HPE Persistent Memory, depending on model
· Memory, standard
· 3.0 TB (24 X 128 GB) LRDIMM
· 6.0 TB (12 X 512 GB) HPE Persistent Memory
Drive supported
· 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD
· 2 M.2 SATA SSD standard on primary riser, depending on configuration
· 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional
· 20 SFF NVMe optional
· NVMe support via Express Bay will limit maximum drive capacity
· NVDIMM type HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors
· NVDIMM rank Single rank
· NVDIMM capacity 16 GB
Security
· Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
· Infrastructure management
· HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional
· requires licenses)
Expansion slots
· 8, for detail descriptions reference the QuickSpecs
· Network controller
· HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model
Storage controller
· 1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model
· System fan features
· Hot-plug redundant fans, standard
· Form factor 2U
Warranty
· Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage.
Minimum dimensions ( H x W x D)
· 44.55 x 73.03 x 8.74 cm
· Weight 14.76 kg
HPE DL380 Gen10 4108 Xeon-S FIO Kit
HPE 16GB 1Rx4 PC4-2666V-R Smart Kit
8 SFF Chassis
3-slots (x8, x16, x8) as standard
HPE 1 Gb 331i Ethernet adapter 4-ports per controller
HPE Smart Array P408i-a SR Gen10
Optional via Universal Media Bay
1x 500W HPE FlexSlot Power Supply
Intel Xeon-Gold 5115 (2.4GHz/10-core/85W) Processor Kit
HPE 16GB Single Rank x4 DDR4-2666 Registered Memory Kit
None HDD 8 SFF Chassis (upgradeable to 24 SFF front)
3-slots (x8, x16, x8) as standard
4 x 1 Gb ports shipping standard
HPE Smart Array P408i-a SR Gen10
Optional DVD-ROM (726536-B21) or DVD-RW (726537-B21)
HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Intel Xeon-Silver 4114 (2.2GHz/10-core/85W) Processor Kit
HPE 16GB Single Rank x4 DDR4-2666 Registered Memory Kit
None HDD 8 SFF Chassis (upgradeable to 24 SFF front)
3-slots (x8, x16, x8) as standard
4 x 1 Gb ports shipping standard
HPE Smart Array P408i-a SR Gen10
Optional DVD-ROM (726536-B21) or DVD-RW (726537-B21)
HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Intel Xeon E5-2620v4 (2.1GHz/8-core/20MB/85W) Processor Kit
HP 16GB (2x8GB) Single Rank x4 DDR4-2400 Registered Memory Kit
None HDD 8 SFF HDD Bays (upgradable to 24)
3 PCIe slots
1Gb Ethernet 4-port 331i Adapter
HPE Flexible Smart Array P440ar/2GB
DVD-ROM (726536-B21) or DVD-RW (726537-B21)
HPE 500W Flex Slot Platinum Power Supply
Intel Xeon E5-2609v4 (1.7GHz/8-core/20MB/85W) Processor Kit
HP 16GB (2x8GB) Single Rank x4 DDR4-2400 Registered Memory Kit
None HDD 8 SFF HDD Bays (upgradable to 24)
3 PCIe slots
1Gb Ethernet 4-port 331i Adapter
HPE Flexible Smart Array P440ar/2GB
DVD-ROM (726536-B21) or DVD-RW (726537-B21)
HPE 500W Flex Slot Platinum Power Supply
