Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon E3-1240 v6 3.0GHz, 8M cache, 4C/8T, turbo (72W)
16GB DDR4 2400 MHz Unbuffered DIMMs
1TB 7.2K RPM SATA 3.5in Hot-plug Hard Drive
2 x PCIe 3.0 slots: x16 slot, full height (1x8 PCIe 3.0)
1GBE Dual Port (BCM5720 GbE LOM)
PERC H330
DVD+/-RW, SATA, Internal
Single, Cabled Power Supply, 250W

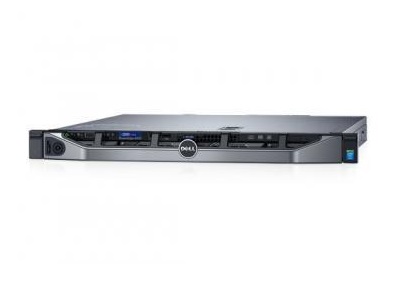

MÁY CHỦ DELL POWEREDGE R230 - Chassis 4x3.5'' Hot Plug
Form Factor: Rack 1U
Processor: Intel Xeon E3-1240 v6 3.0GHz, 8M cache, 4C/8T, turbo (72W)
Memory: 16GB DDR4 2400 MHz Unbuffered DIMMs
Network Controller: On-Board LOM 1GBE Dual Port (BCM5720 GbE LOM)
Raid Controller: PERC H330
Hard Drive: 1TB 7.2K RPM SATA 3.5in Hot-plug Hard Drive
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: 2 x PCIe 3.0 slots: x16 slot, full height (1x8 PCIe 3.0)
Remote management :iDRAC8, Basic
Power Supply: Single, Cabled Power Supply, 250W
Tech Specs & Customization
Processor
1 Processor From The Following Product Families:
Intel® Xeon® Processor E3-1200 V6 Product Family
Intel Pentium®
Intel Core I3®
Intel Celeron®
Operating System
Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, X64
Microsoft® Windows Server® 2016
Red Hat® Enterprise Linux®
Vmware Vsphere® Esxi®
Suse® Linux Enterprise Server®
Chassis
2 X 3.5" Cabled Hdd 19.5" 1U Chassis
4 X 3.5" Cabled Hdd 19.5" 1U Chassis
4 X 3.5" Hot-Plug Hdd 19.5" 1U Chassis
Chipset
Intel C236
Communications
2 X 1gbe Lom
Dimensions & Weight
Depth Without Bezel: 495.0 Mm (19.5 In)
Depth With Bezel: 551.3 Mm (21.7 In)
Height: 42.8 Mm (1.68 In)
Width Without Rack Latches: 434.0 Mm (17.08 In)
Width With Rack Latches: 482.4 Mm (18.99 In)
Drive Bays
2 X 3.5" Cabled Hdd
4 X 3.5" Cabled Hdd
4 X 3.5" Hot Swap Or 2.5" Hot Swap In Hybrid Drive Carrier
Device Access
5 Total Usb:
Rear: 2 X Usb 3.0 Ports
Front: 2 X Usb 2.0 Ports
Internal: 1 X Usb 3.0 Port
Embedded Hypervisor (Optional)
Hypervisor Support
Microsoft Windows Server With Hyper-V®
Vmware® Vsphere® Esxi®
Memory*
Architecture: Up To 2400mt/S Ddr4 Dimms
Memory Type: Udimms
Memory Module Sockets: 4
Maximum Ram: Up To 64gb
Management
Systems Management:
Ipmi 2.0 Compliant
Dell Openmanage Essentials
Dell Openmanage Mobile
Dell Openmanage Power Center
Dell Openmanage Integrations:
Dell Openmanage Integration Suite For Microsoft System Center
Dell Openmanage Integration For Vmware Vcenter™
Dell Openmanage Connections:
Hp Operations Manager, Ibm Tivoli® Netcool® And Ca
Network And Systems Management
Dell Openmanage Plug-In For Oracle® Database Manager
Remote Management:
Idrac8 With Lifecycle Controller, Idrac8 Express (Default),
Idrac8 Enterprise (Upgrade), 8gb Vflash Media (Upgrade),16gb Vflash Media (Upgrade)
Network Controller
Broadcom® Bcm5720
Power
250w Cabled Psu
Rack Support
Readyrails™ Static Rails For Tool-Less Mounting In 4-Post Racks With Square Or Unthreaded Round Holes Or Tooled Mounting In 4-Post Threaded And 2-Post Racks.
Raid Controllers
S130, H330, H730, H830
Slots
2 X Pcie 3.0 Slots: X16 Slot, Full Height (1x8 Pcie 3.0)+ X8 Slot, Low Profile (1x4 Pcie 3.0)
Storage
2.5” Sata 7.2k
2.5” Nearline Sas 7.2k
2.5” 10k Sas Hdds
2.5” 15k Sas Hdds
2.5” Sata Hdds
3.5” Enterprise Sata 7.2k Hdds
3.5” Nearline Sas 7.2k Hdds
3.5” 7.2k Sata Entry Drive
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
600GB 10K RPM SAS 12Gbps 512n 2.5 Hot-plug Hard Drive
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R (bộ nhớ đệm 13,75M, 2,40 GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hotplug
2 x Gen3 slots all x16
2 x 1GbE LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
Intel Xeon Silver 4214 Processor (16.5M Cache, 2.20 GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
600B 10K RPM SAS 12Gbps 512n 2.5 inch Hotplug
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW, SATA, Internal
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5 Inch Hotplug
Riser Config 3,1x16 LP,1x16 FH
BC5720 QP
PERC H730P
DVD+/-RW, SATA, Internal
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4214 Processor (16.5M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
600GB 10k RPM SAS 12Gbps 512n 2,5 Hotplug
iDRAC9 Ent
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2,5in Hot-plug
iDRAC9 Ent
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID
DVD+/-RW
Redundant Power Supply (0+1), 550W
