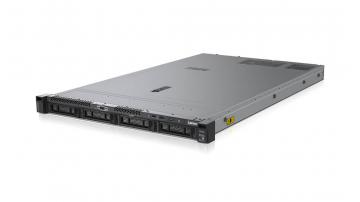

Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon E-2124 Processor (8M Cache, up to 4.30 GHz)
16GB 2666 DDR4 Ecc Unbuffered DIMMs
300GB 15K RPM SAS 12Gbps 2.5 Hotplug
2 slots PCIe Gen 3.0 slots
BC5720DP On-Board LOM 1GBE Dual Port
PERC H330
DVD+/-RW
Redundant Power Supply (0+1) 350W

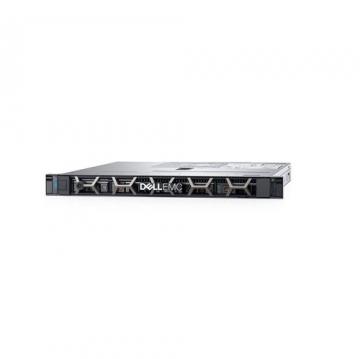

Máy chủ Dell PowerEdge R340 - PE R340 Chassis 4x3.5''
Form Factor: Rack 1U
Processor: Intel Xeon E-2124 Processor (8M Cache, up to 4.30 GHz)
Memory: 16GB 2666 DDR4 Ecc Unbuffered DIMMs
Hard Drive: 300GB 15K RPM SAS 12Gbps 2.5'' HP
Network Controller: BC5720DP On-Board LOM 1GBE Dual Port
Raid Controller: PERC H330 RAID Controller
Remote management :iDRAC9, Basic
Optical Drive: DVD+/-RW Internal
PCI Slots: 2 slots PCIe Gen 3.0 slots
Power Supply: Redundant Power Supply (0+1) 350W
Tech Specs & Customization
Processor
1 processor from the following:
Intel® Xeon® E-2100 product family,
Intel Pentium®,
Intel Core i3®,
Intel Celeron®
Bezel
Optional security bezel
Chassis
Form Factor: Rack (1U)
Dimensions:
Chassis width: 434.00mm (17.08")
Chassis depth: 595.63mm (23.45") (3.5" HHD config)
Chassis depth: 544.836mm (21.45") (2.5" HHD config)
Note: These dimensions do not include: bezel, redundant PSU
Chassis weight: 13.6 kg (29.98 lb)
Memory*
DIMM Speed: Up to 2666MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Slots: 4
Maximum RAM: Up to 64GB
Hard Drive
Up to 8 x 2.5 hot-plug SAS, SATA, or SSD
Up to 4 x 3.5 hot-plug SAS, SATA, or SSD
Management
Embedded / At-the-Server
iDRAC9 with Lifecycle Controller
iDRAC Direct
iDRAC RESTful API with Redfish
Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
Dell EMC RACADM CLI
IPMI Tool
OpenManage Integrations
Microsoft® System Center
VMware® vCenter™
BMC Truesight (available from BMC)
Red Hat Ansible
OpenManage Connections
Nagios Core & Nagios XI
Micro Focus Operations Manager i (OMi)
IBM Tivoli Netcool/OMNIbus
Network Controller
2 x 1GbE LOM Network Interface Controller (NIC) ports
Power Supplies
Single or dual 350W or 550W hot-plug redundant power supplies
Storage Controllers
Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
I/O Expansion Slots
2 x PCIe Gen 3.0 slots
One x8 slot low-profile, half length with x4 slot width
One x16 slot low-profile/full-height, half length with x8 bandwith
Ports
Front:
• One USB 2.0
• Micro USB 2.0 compliant for iDRAC Direct
Rear:
• Two USB 3.0
• VGA
• Serial connector
Internal port:
• One USB 3.0
Supported Operating Systems
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Citrix® XenServer®
Ubuntu Server
Certify XenServer
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region
