(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
Up to 5 x PCIeGen 3 slots
Broadcom 5720 Dual Port 1Gb LOM
PERC H730P
DVD+/-RW
Redundant (0+1), 750W

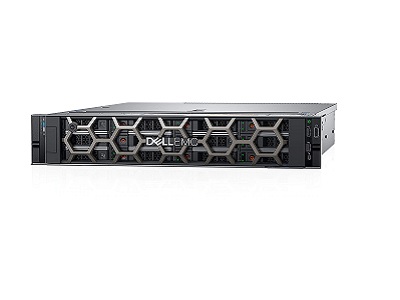

Máy chủ Dell PowerEdge R540 8x3.5 Silver 4210R
Form Factor: 2U rackmount
Processor: Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
Memory: 16GB DDR4 3200Mhz ECC Registered DIMMs
Hard Drive: 4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
Raid Controller: PERC H730P RAID Controller, 2Gb NV Cache, Minicard
Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM
PCI-Express Slots: Up to 5 x PCIeGen 3 slots
Optical Drive: DVD+/-RW, SATA, Internal
Remote management : iDRAC9 Enterprise with Lifecycle Controller
Power Supply: Redundant (0+1), 750W
Rail kit:Sliding Rails Rackmount 2U Kit
Tech Specs & Customization
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 20 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Memory
DIMM Speed
Up to 2666MT/s
Memory Type
RDIMM
LRDIMM
Memory Module Slots
16 DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 512GB
LRDIMM 1TBi
Storage
Front Bays
Up to 12 x 3.5” SAS/SATA HDD max 168TB
DVD-ROM, DVD+RW (optional)
Rear Bays
Up to 2 x 3.5” SAS/SATA HDD max 28TB
Storage Controllers
Internal Controllers
PERC H330, H730P, H740P, HBA330
External Controllers
H840, 12 Gbps SAS HBA
Software RAID: S140
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB, 480 GB
Internal Dual SD Module
Management
Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
495W Platinum
750W Platinum
750W 240HVDC Platinumi
1100W Platinum
1100W 380V HDC Platinumi
Hot plug power supplies with full redundancy option
Ports
Network Options
2 x 1GbE LOM +
(optional) LOM Riser 2 x 1GbE, or
2 x 10GE SFP+, or
2 x 10GE BaseT
Front Ports
1 x Dedicated iDRAC direct USB
1 x USB 2.0
1 x Video
Rear Ports
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
Slots
PCle
Non-rear storage config
1 x full height/full length
1 x half height/half length (2U Right riser) slots
3 x half height/half length slots
Rear storage config
1 x half height/half length (1U left riser)
1 x half height/half length or 1full height/half length (1U right riser)
Bezel: Optional LCD bezel or security bezel
Form Factor: 2U Rack Server
Dimensions & Weight
Height
86.8mm (3.41")
Width
434mm (17.08'')
Depth
703.76mm (27.71”)
Weight
29.68kg (65.43lbs.)
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
.jpg)
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 inch Hotplug
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5'' Hot-plug Hard Drive
Support Up to 8 x Gen3 slots, Up to 4 x16
5720 QP 1Gb Network
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
Support Up to 8 x Gen3 slots, Up to 4 x16
5720 QP 1Gb Network
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 2.5" Hot Plug Hard Drive
Support Up to 8 x Gen3 slots, Up to 4 x16
5720 QP 1Gb Network
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive
Options to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
PERC H730P
Options
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 inch Hotplug
Options to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
PERC H730P
Options
Redundant Power Supply (1+1), 750W
