Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
Support Up to 8 x Gen3 slots, Up to 4 x16
5720 QP 1Gb Network
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W

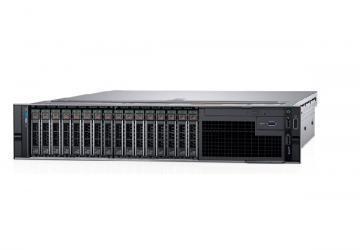

MÁY CHỦ DELL POWEREDGE R740 - PE R740 Chassis 8x3.5''
Form Factor: 2U rackmount
Processor: Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
Memory: 16GB DDR4 3200hz ECC Registered DIMMs
Hard Drive: 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
Raid Controller: PERC H730P RAID Controller, 2Gb NV Cache, Minicard
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: Support Up to 8 x Gen3 slots, Up to 4 x16
Network Controller: Broadcom 5720 QP 1Gb Network
Remote management : iDRAC9 Enterprise with Lifecycle Controller
Rail kit:Sliding Rails Rackmount 2U Kit
Power Supply: Redundant Power Supply (1+1), 750W
Tech Specs & Customization
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 28 cores per processor
Operating System
Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Dimensions & Weight
Height:
86.8mm (3.4")
Width*:
434.0mm (17.1")
Depth*:
737.5mm (29.0")
Weight:
28.6kg (63.0lbs.)
Dimensions do not include bezel
Memory
DIMM Speed:
Up to 2933MT/s
Memory Type:
RDIMM
LRDIMM
NVDIMM
DCPMM (Intel® Optane™ DC persistent memory)
Memory Module Slots:
24 DDR4 DIMM slots (12 NVDIMM or 12 DCPMM only)
Supports registered ECC DDR4 DIMMs only
Maximum RAM:
RDIMM 1.53TB
LRDIMM 3TB
NVDIMM 192GB
DCPMM 6.14TB (7.68TB with LRDIMM)
Management
Embedded / At-the-Server
iDRAC9
iDRAC Restful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC Truesight
IBM Tivoli® Network Manager IP Editio
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli Netcool/OMNIbus
Micro Focus Operations Manager I
Nagios® Core
Nagios® XI
Ports
Network Options:
4 x 1GbE
2 x 10GbE + 2 x 1GbE
4 x 10GbE
2 x 25GbE
Front Ports:
1 x Dedicated iDRAC direct USB
2 x USB 2.0
1 x USB 3.0 (optional)
1 x VGA
Rear Ports:
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x VGA
Storage Controllers
Internal controllers:
PERC H330, H730P, H740P, HBA330
Software RAID:
S140
External HBAs (non-RAID):
12Gbps SAS HBA
External PERC (RAID):
H840
Boot Optimized Storage Subsystem:
HWRAID 2 x M.2 SSDs 240GB or 480GB
Accelerators
Up to three 300W or six 150W GPUs
Up to three double-width or four single-width FPGAs
Storage
Front Bays
Up to 16 x 2.5” SAS/SATA/SSD, max 122.88TB
Up to 8 x 3.5” SAS/SATA, max 112TB
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Power Supplies
495W Platinum
750W Platinum
750W 240VDC* Platinum
1100W Platinum
1100W -48VDC Gold
1100W 380VDC* Platinum
1600W Platinum
2000W Platinum
2400W Platinum
750W Titanium
Hot plug power supplies with full redundancy option
Up to 6 hot plugs fans with full redundancy
Slots
PCIe
8 x Gen3 slots (4 x16)
Video Card
1 x VGA
Bezel
Optional LCD bezel or security bezel
Form Factor
2U Rack Server
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Chassis
Optional LCD or Security bezel
Data Protection
TPM 1.2/2.0 optional Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase
Drive Bays
Front drive bays:
Up to 16 x 2.5” SAS/SATA/SSD, max 122.88TB
Up to 8 x 3.5” SAS/SATA, max 112TB
Power
Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, 2000W and 2400W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)
Hot plug power supplies with full redundancy. Up to 6 hot plugs fans with full redundancy.
GPU
Accelerator options:
Up to three 300W or six 150W GPUs, or up to three double-width or four single-width FPGAs.
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 inch Hotplug
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5'' Hot-plug Hard Drive
Support Up to 8 x Gen3 slots, Up to 4 x16
5720 QP 1Gb Network
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 2.5" Hot Plug Hard Drive
Support Up to 8 x Gen3 slots, Up to 4 x16
5720 QP 1Gb Network
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
Up to 5 x PCIeGen 3 slots
Broadcom 5720 Dual Port 1Gb LOM
PERC H730P
DVD+/-RW
Redundant (0+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive
Options to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
PERC H730P
Options
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 inch Hotplug
Options to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
PERC H730P
Options
Redundant Power Supply (1+1), 750W
