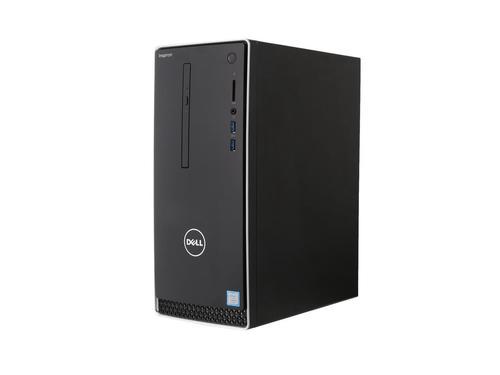

Inspiron 3668 Desktop - i7 (Thay thế Inspiron 3650)
• Processor : i7-7700 processor (8MB Cache, up to 3.60 GHz)
• Ram : 16GB DDR4 at 2400MHz
• Hard Drive :128GB SSD+1TB GB 7.2k HDD
• Graphics : NVIDIA® GeForce® GTX 750Ti with 2GB DDR5 graphics memory
• Wireless : 1707 Card (802.11BGN + Bluetooth 4.0, 2.4 GHz)
• Dell Optical Mouse & Keyboard
• OS : Ubuntu Linux 16.04
• Waranty : 1 year Prosupport
• C/O : Malaysia
Specifications
Dimensions and weight
Table 2. Dimensions and weight
Height 352.90 mm (13.90 in)
Width 154 mm (6.06 in)
Depth 303 mm (11.93 in)
Weight (approximate) 5.90 kg (13.01 lb)
NOTE: The weight of your
computer varies depending on the
conguration ordered and the
manufacturing variability.
System information
Table 3. System information
Computer model Inspiron 3668
Processor
• Intel Core i3/i5/i7
• Intel Celeron
• Intel Pentium
Chipset Intel H110
Memory
Table 4. Memory specications
Slots Two U-DIMM slots
Type DDR4
Speed
• 2133 MHz (Intel Celeron)
14
• 2400 MHz (Intel Pentium and Intel
Core i3/i5/i7)
Congurations supported
• 2 GB DDR4 at 2400 MHz (1 x 2 GB)
• 4 GB DDR4 at 2400 MHz (2 x 2 GB)
• 8 GB DDR4 at 2400 MHz (2 x 4 GB)
• 16 GB DDR4 at 2400 MHz (2 x 8
GB)
Ports and connectors
Table 5. Ports and connectors
External:
Network One RJ45 port
USB
• Four USB 2.0 ports
• Two USB 3.0 ports
Audio/Video
• One headset port
• One microphone port
• One line-out port
• One line-in port
• One VGA port
• One HDMI port
Internal:
M.2 card One M.2 card slot for Wi-Fi and
Bluetooth combo card
PCIe slots
• Two PCIe x1 card slots
• One PCIe x16 card slot
15
Media-card reader
Table 6. Media-card reader specications
Type One 5-in-1 slot
Cards supported
• SD card
• SD High Capacity (SDHC) card
• SD Extended Capacity (SDXC) card
• MultiMediaCard (MMC)
• MultiMediaCard Plus (MMC Plus)
Communications
Table 7. Supported Communications
Ethernet 10/100/1000 Mbps Ethernet controller
integrated on system board
Wireless
• Up to Wi-Fi 802.11ac/n
• Bluetooth 4.0
Audio
Table 8. Audio specications
Controller Realtek ALC3820
Type Integrated 5.1 channel Intel High Denition
Audio
Storage
Your computer supports one 3.5-inch hard drive or two 2.5-inch hard drives/solidstate drives.
Table 9. Storage specications
Interface
• SATA 1.5 Gbps for optical drive
16
• SATA 6 Gbps for hard drive
Hard drive
• One 2.5-inch hard drive
• One 3.5-inch hard drive
Solid-state drive One 2.5-inch solid-state drive
Optical drive One 9.5-mm DVD+/-RW drive
Power ratings
Table 10. Power ratings
Input voltage 100 VAC to 240 VAC
Input frequency 50 Hz to 60 Hz
Input current (maximum) 4.0 A
Video
Table 11. Video specications
Integrated Discrete
Controller Intel HD Graphics
• NVIDIA GeForce GT710FH
• NVIDIA GeForce GT730
• NVIDIA GeForceGTX750Ti
• AMD Radeon R9 360
Memory Shared system memory
• 2 GB DDR3
• 2 GB GDDR5
