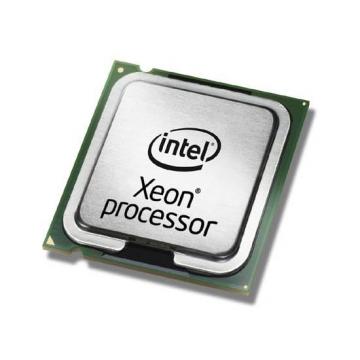

Bộ xử lý Intel® Xeon® E5-2690 v4 35M bộ nhớ đệm, 2.60 GHz
General information
Type CPU / Microprocessor
Market segment Server
Family
Intel Xeon E5-2600 v4
Model number
E5-2690 v4
CPU part numbers
CM8066002030908 is an OEM/tray microprocessor
BX80660E52690V4 is a boxed microprocessor
Frequency 2600 MHz
Maximum turbo frequency 3500 MHz
Bus speed 9.6 GT/s QPI (4800 MHz)
Clock multiplier 26
Package 2011-land Flip-Chip Land Grid Array
Socket Socket 2011-3 / R3 / LGA2011-3
Size 2.07" x 2.01" / 5.25cm x 5.1cm
Introduction date March 31, 2016
Price at introduction $2090
S-spec numbers
Part number ES/QS processors Production processors
QK8X SR2N2
BX80660E52690V4 +
CM8066002030908 +
Unknown +
Architecture / Microarchitecture
Microarchitecture Broadwell
Platform Grantley-EP 2S
Processor core Broadwell-EP
Core stepping M0 (QK8X, SR2N2)
CPUID 406F1 (QK8X)
Manufacturing process 0.014 micron
Data width 64 bit
The number of CPU cores 14
The number of threads 28
Floating Point Unit Integrated
Level 1 cache size 14 x 32 KB 8-way set associative instruction caches
14 x 32 KB 8-way set associative data caches
Level 2 cache size 14 x 256 KB 8-way set associative caches
Level 3 cache size 35 MB 20-way set associative shared cache
Physical memory 1536 GB
Multiprocessing Up to 2 processors
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
EM64T / Extended Memory 64 technology / Intel 64
NX / XD / Execute disable bit
HT / Hyper-Threading technology
VT-x / Virtualization technology
VT-d / Virtualization for directed I/O
TBT 2.0 / Turbo Boost technology 2.0
TXT / Trusted Execution technology
Low power features Enhanced SpeedStep technology
Integrated peripherals / components
Integrated graphics None
Memory controller The number of controllers: 1
Memory channels: 4
Supported memory: DDR4-1600, DDR4-1866, DDR4-2133, DDR4-2400
Maximum memory bandwidth (GB/s): 76.8
ECC supported: Yes
Other peripherals
Direct Media Interface 2.0
Quick Path Interconnect (2 links)
PCI Express 3.0 interface (40 lanes)
Electrical / Thermal parameters
Maximum operating temperature 89°C
Minimum power dissipation 42 Watt (C1E state)
13 Watt (C6 state)
Thermal Design Power 135 Watt
Notes on Intel Xeon E5-2690 v4
The processor has the following security, data protection and/or software features: Intel Secure Key, vPro technology and OS Guard.
