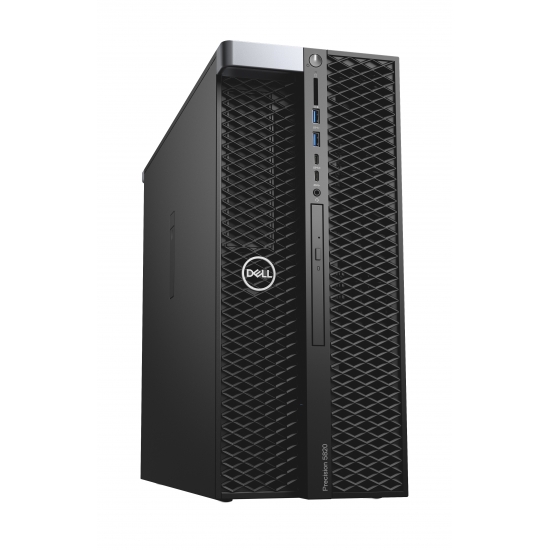

Dell Precision 5820 Tower XCTO Base - 42PT58DW21
- Processor: Intel Xeon W-2123 3.6GHz, 3.9GHz
- Ram: 16GB (2x8GB) 2666MHz DDR4 RDIMM ECC
- Hard Drive: 1TB 7200rpm SATA 3.5” Hard Drive
- Integrated Intel AHCI SATA chipset controller (8x 6.0Gb/s), SW RAID 0,1,5,10
- Optical Driver: 8X DVD+/-RW Slimline
- Graphics: NVIDIA Quadro P600, 2GB, 4 mDP (5820T)
- Dell Optical Mouse MS116 Black/ Dell Multimedia Keyboard KB216 Black (English)
- Windows 10 Pro & 3Yr ProSupport
Workstation Dell Precision T5820 Specs
Processor
Intel® Xeon® Processor W Family CPUs (Skylake-W) with up to 10 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology
Operating System
Windows 10 Pro for Workstations (upto 4 Cores Plus) English
Windows 10 Pro for Workstations (4 Cores Plus) English
Windows 7 Professional (includes Windows 10 Pro for Workstations License, up to 4 Cores) English
Windows 7 Professional (includes Windows 10 Pro for Workstations License, up to 4 Cores) English
Windows 7 Professional (VLA includes Windows 10 Pro for Workstations, upto 4 Cores) English
Windows 7 Professional (VLA includes Windows 10 Pro for Workstations, 4 Cores Plus) English
Red Hat Enterprise Linux WS v7.3 with 5 YR RHN
Red Hat Enterprise Linux WS v7.3 with 3 YR RHN
Red Hat Enterprise Linux WS v7.3 with 1 YR RHN
Ubuntu Linux 16.04,FI,WW
Video Card
Support for 2 PCI Express® x16 Gen 3 graphics card2 - up to 600W with maximum of up to 2 x 300W double width graphics cards.
High end 3D cards:
Radeon™ Pro WX 9100
Radeon™ Pro SSG (future)
NVIDIA Quadro GP100
NVIDIA Quadro P6000
NVIDIA Quadro P5000
Mid-range 3D cards:
Radeon™ Pro WX 7100
Radeon™ Pro WX 5100
Radeon™ Pro WX 4100
NVIDIA Quadro P4000
NVIDIA Quadro P2000
Entry 3D cards:
Radeon™ Pro WX 3100
Radeon™ Pro WX 2100
NVIDIA Quadro P1000
NVIDIA Quadro P600
NVIDIA Quadro P400
Professional 2D cards:
NVIDIA NVS 310
NVIDIA NVS 315
Memory
Four channel memory up to 256GB 2666MHz DDR4 ECC memory. 8 DIMM slots
Note: Memory speed is dependent on specific Intel Xeon Processor W Family processor installed.
Hard Drive
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated.
Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller.
NVMe RAID 0,1 option (Intel RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available
as customer kit.
Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC).
M.2 NVMe PCIe SSDs
Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards.
Front FlexBay M.2 NVMe PCIe SSDs
Up to 2 x 1TB drives
2.5” SATA SSD
Up to 6 x 1TB drives
2.5” SAS SSD
Up to 6 x 800GB drives
3.5” SAS 7200 RPM 12Gb/s
Up to 5 x 4TB
2.5” SAS 10K RPM 12Gb/s
Up to 6 x 1.8TB
2.5” SAS 15K RPM 12Gb/s
Up to 6 x 900GB
2.5” Self Encrypting Drives
512GB 2.5” SED (OPAL/ FIPS (140-2) HDD
M.2 PCIe SED SSD
Ports
Front
2 USB 3.1 Type A
2 USB 3.1 Type C
1 Universal Headphone Jack
Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal
1 USB 2.0
1 USB 2.0 header (requires 3rd party splitter cable to support USB 2.0 Type A ports)
8 SATA @6Gb/s plus 1 SATA for optical
Rear
6 USB 3.1 Type A
1 Serial
1 RJ45 Network
2 PS2
1 Audio Line out
1 Audio Line in/Microphone
Slots
All slots PCIe Gen 3
2 PCIe x16
1 PCIe x16 wired as x8
1 PCie x16 wired as x4
1 PCIe x16 wired as x1
1 PCI 32/33
Dimensions & Weight
Height: 16.30” (417.9 mm) X Width: 6.80” (176.5 mm) X Depth: 19.11” (518.3 mm)
Starting weight: 32.0 lbs (15.4 kg)
Chassis
Bays: (2) FlexBays and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit)
(1) Slimline optical bay; (1) SD slot UHS ll Class 3 with read only support (SW enabled)
Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and future U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available.
