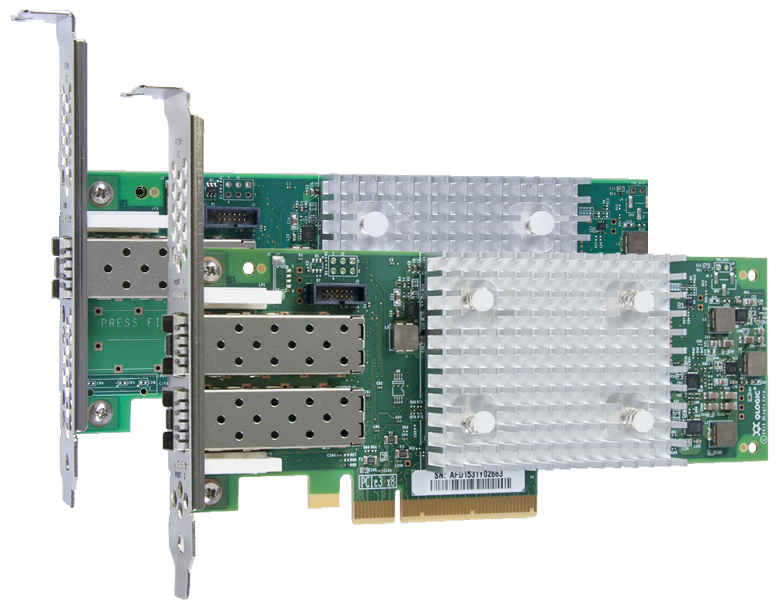

Cạc tín hiệu quang QLogic 16Gb Enhanced Gen5 FC Dual-port HBA - 01CV760
Technical specifications I The QLogic Enhanced Gen 5 16 Gb FC HBAs have the following specifications:
Based on the QLogic QLE2690 (single port) and QLE2692 (dual port) adapters
Host interface: PCIe 3.0 x8
Ports: Single-port and dual-port SFP+ based adapters
Link speed: Support for 16 Gb, 8 Gb and 4 Gb FC link speeds, which are automatically negotiated
Data rate: 14.025 Gbps (1600 MBps), 8.5 Gbps (800 MBps), and 4.25 Gbps (400 MBps) autosensing
(per port), with full duplex
Performance: Up to 1,300,000 IOPS (up to 650,000 IOPS per port)
Fibre Channel standards: FC-PI-5, FC-GS-2, FC-GS-3, SCSI-FCP, FCP-2, FC-TAPE
Topology: Point-to-point and switched fabric
Hot-pluggable 16 Gbps Fibre Channel SFP+ short wave optical transceivers (850 nm) with LC
connectors (included with the adapters). Note: Other transceivers are not supported.
Distance support:
Operating at 16 Gbps:
Up to 35 m on 50/125 µm OM2 Multi-Mode Fiber (MMF)
Up to 100 m on 50/125 µm OM3 MMF
Up to 125 m on 50/125 µm OM4 MMF
Operating at 8 Gbps:
Up to 21 m on 62.5/125 µm OM1 MMF
Up to 50 m on 50/125 µm OM2 MMF
Up to 150 m on 50/125 µm OM3 MMF
Up to 190 m on 50/125 µm OM4 MMF
Operating at 4 Gbps:
Up to 70 m on 62.5/125 µm OM1 MMF
Up to 150 m on 50/125 µm OM2 MMF
Up to 380 m on 50/125 µm OM3 MMF
Up to 400 m on 50/125 µm OM4 MMF
Management software:
The QLogic unified management application, QLogic QConvergeConsole (QCC), provides
single-pane-of-glass management across generations of QLogic FC adapters.
QLogic supports all major APIs for deployment flexibility and integration with third-party
management tools, including the VMware vCenter and Brocade Network Advisor.
MSP: 7ZT7A00544
