DELL RAID

Raid PERC H330 Raid Controller

Giá: Liên hệ

(Giá chưa bao gồm thuế VAT 10%)

Mã sản phẩm: Integrated or Adaptor

Hãng sản xuất : Dell
Bảo hành : 12 Tháng
Tình trạng: Còn hàng
Lượt xem: 2913

Thông số kĩ thuật
tài liệu kĩ thuật
Sản phẩm bạn quan tâm

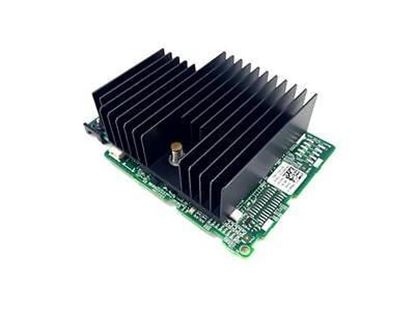

Raid PERC H330 Raid Controller (Integrated or Adaptor)

As Storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The newest line of Dell PowerEdge RAID Controller (PERC) cards offer unmatched I/O performance for database applications, streaming digital media environments and storage intensive applications.
Key Features for the Series-10, 12Gb/s SAS PowerEdge RAID Controller (PERC):
PCI-Express Gen3.0 support & 12Gb/s SAS (SAS 3.0) host interface
8GB NV Flash Backed Cache on the H740P & H8401
Significantly increased IOPs performance & throughput performance capability
Capable of RAID as well as Non-RAID (JBOD Mode) operations

PowerEdge RAID Controller (PERC) Series 9
PERC H830 Adapter	12Gb/s SAS	PCI-Express 3.0	2x4 External	2GB NV	Flash Backed Cache	0,1,5,6,10,50,60	255	Hardware RAID
PERC H730P Adapter	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	2GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H730P Mini Mono	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	2GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H730P Mini Blade	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	2GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H730 Adapter	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	1GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H730 Mini Mono	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	1GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H730 Mini Blade	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	1x4 Internal	1GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware RAID
PERC H330 Adapter	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	No Cache	No Cache	0,1,5,10,50 *See Help Me Choose for R5/R50 performance with no controller cache	16 RAID, 32 Non-RAID	Hardware RAID
PERC H330 Mini Mono	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	No Cache	No Cache	0,1,5,10,50 *See Help Me Choose for R5/R50 performance with no controller cache	16 RAID, 32 Non-RAID	Hardware RAID
PERC H330 Mini Blade	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	No Cache	No Cache	0,1,5,10,50 *See Help Me Choose for R5/R50 performance with no controller cache	8	Hardware RAID
S130 Software RAID	6Gb/s SATA	N/A	N/A	No Cache	No Cache	0,1,5,10	8	Software RAID - Windows Only
HBA - Internal 12Gbps SAS Ext. HBA	12Gb/s SAS	PCI-Express 3.0	2x4 External	No Cache	No Cache	No RAID Pass-Thru Only	240	No RAID SAS HBA
HBA – Internal HBA330 Mini Mono & Adapter	12Gb/s SAS 6Gb/s SATA	PCI-Express 3.0	2x4 Internal	No Cache	No Cache	No RAID Pass-Thru Only	32	No RAID SAS HBA
