Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel® Xeon E5-2620 v4 2.1GHz,20M Cache,8.0GT/s QPI,Turbo,HT,8C/16T (85W)
1 x 8GB DDR4 ECC Registered DIMMs
None HDD Support Up to 8 x3.5
6 slots PCIe
On-Board Dual Port Broadcom 5720
H330 SAS 12Gbp/s
DVD+/-RW, SATA, Internal
Single, Hot-plug Power Supply (1+0), 495W

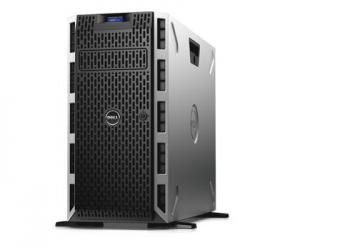

PowerEdge T430 Tower Server E5 2620v4 8x3.5
Form Factor: Tower
Processor: 1 x Intel® Xeon E5-2620 v4 2.1GHz,20M Cache,8.0GT/s QPI,Turbo,HT,8C/16T (85W)
Memory: 1 x 8GB DDR4 ECC Registered DIMMs
Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM
Raid Controller: Dell Perc H330 SAS 12Gbp/s Adapter PCI-Express
Hard Drive: None HDD
Support Up to 8 x3.5” SAS, SATA, nearline SAS,SSD drives with optional flex bay
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: Support for up to 6 full height slots: 4 x PCIe 3.0, 2 x PCIe 2.0
Remote management :iDRAC8, Basic
Power Supply: Single, Hot-plug Power Supply (1+0), 495W
Remote management :iDRAC8, Basic
Tech Specs Overview Services and Solutions
Processor
· Intel® Xeon® processor E5-2600 v4 product family
· Processor sockets: 2
· Operating System
· Microsoft® Windows Server® 2008 R2
· Microsoft Windows Server 2012
· Microsoft Windows Server 2012 R2
· Microsoft® Windows Server® 2016
· Novell® SUSE® Linux Enterprise Server
· Red Hat® Enterprise Linux
· VMware® ESX®
Memory Up to 2400MT/s DDR4 DIMMs
· Maximum RAM: Up to 384GB (12 DIMM slots): 4GB/8GB/16GB/32GB
Drive Bays
· Up to 8 x3.5” SAS, SATA, nearline SAS,SSD drives with optional flex bay
· Up to 4 x3.5” SAS, SATA, nearline SAS,SSD drives with optional flex bay
· Up to 16 x 2.5” SAS, SATA, nearline SAS, SSD drives with optional flex bay
Chassis
Height:
· Chassis base height - 430.3 mm (17.04")
· with feet - 443.3 mm (17.45")
Width:
· Chassis base width 5U - 218 mm (8.58")
· with feet - 304.5 mm (11.98")
Depth: front to rear wall (with bezel) - 558.6 mm (21.99")
Availability ECC memory
· Single Device Data Correction (SDDC)
· Spare Rank
· Hot-plug hard drives
· Hot-plug redundant power
· iDRAC8 with Lifecycle Controller
· Support for HA clustering
· Virtualization-ready
· Internal Dual SD Module (Failsafe Hypervisor)
· TPM 1.2
Power 495W, 750W, 1100W hot-plug PSU
450W cabled PSU
RAID Controllers
· Support for a maximum of 1 internal controller and one external controller
· PERC Η730,PERC Η730P and PERC Η830
Chipset Intel C610 series chipset
Storage SAS, SATA, nearline SAS, SSD
Slots Support for up to 2 x PCIe 2.0 + 4 x PCIe 3.0
Network Controller 2 x 1GbE LOMs
Management Systems management:
· IPMI 2.0 compliant
· Dell OpenManage Essentials
· Dell OpenManage Mobile
· Dell OpenManage Power Center
Remote management:
· iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),16GB vFlash media (upgrade), iDRAC Quick Sync
· Dell OpenManage Integrations:
· Dell OpenManage Integration Suite for
· Microsoft® System Center
· Dell OpenManage Integration for VMware® vCenter™
· Dell OpenManage Connections:
· HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
· Dell OpenManage Plug-in for Oracle® Database Manager
· Embedded Hypervisor (Optional)
· Citrix® XenServer®
· Microsoft® Windows Server® 2008, with Hyper-V®
· VMware® vSphere
Communications
· Broadcom 5720
· Optional add-in NICs
Video Card
· Video Type: Integrated Matrox® G200 with iDRAC8
· Video Memory: 16 MB shared with iDRAC8 application memor
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.8 TB 10K RPM SAS 12Gbps 512e 2.5in , 3.5inch Hot-plug
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 RDIMM 2666MHz
2TB 7.2K RPM NLSAS 12Gbps 512n 3,5 inch hotplug
Up to 5 PCIe Gen3 slots
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330
DVD+/-RW
Redundant Power Supply (0+1), 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB 2666 DDR4 Ecc Unbuffered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
2 slots PCIe Gen 3.0 slots
BC5720DP On-Board LOM 1GBE Dual Port
PERC H330
DVD+/-RW
Power Supply (0+1) 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB DDR4 2666 MHz Unbuffered DIMMs
1TB 7.2K RPM SATA 6Gbps 512n 3.5in Cabled Hard Drive
4 slots PCIe
On-Board LOM 1GBE
PERC H330
DVD+/-RW Internal
365W
Intel Xeon E-2224G 3.5GHz, 8M cache, 4C/4T, turbo (71W)
8GB 2666MT/s DDR4 ECC UDIMM
1TB 7.2K RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive
1 X Gen3 slot (x16), 2 X Gen3 slot (x4), 1 X PCI
1 x 1GbE
Intel® VROC 6.x
8x DVD+/-RW 9.5mm Optical Disk Drive
300W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5 HYB CARR
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
