Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.8 TB 10K RPM SAS 12Gbps 512e 2.5in , 3.5inch Hot-plug
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W

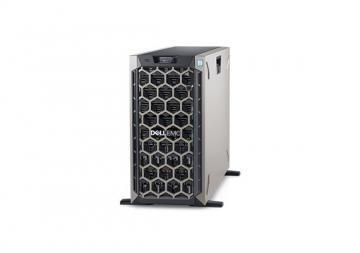

Máy chủ Dell PowerEdge T640
Form Factor: Tower or rack, 5U
Processor: Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
Memory: 16GB DDR4 3200Mhz ECC Registered DIMMs
Hard Drive: 1.8 TB 10K RPM SAS 12Gbps 512e 2.5in Hot-plug Hard Drive, 3.5" HYB CARR
Raid Controller: PERC H730P RAID Controller, 2Gb NV Cache, Minicard
Network Controller: On-Board Dual-Port 10GbE LOM
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: Up to 8 PCIe Gen3 slots
Remote management : iDRAC9 Enterprise with Lifecycle Controller
Power Supply: Redundant Power Supply (1+1), 750W
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Operating System : Dell T640 hỗ trợ hệ điều hành
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Accelerators
Up to four 300W and eight 150W GPUs
NVIDIA Tesla P100, P40, K80M, M60, M10, AMD S7150, S7150X2
Memory
DIMM Speed
Up to 2993 MT/s
Memory Type
RDIMM
LRDIMM
NVDIMM
Memory Module Slots
24 DDR4 DIMM slots (12 NVDIMM only)
Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 3TB
LRDIMM 3TBi
NVDIMM 192GB
Storage
Front Bays
Up to 8 or 18 x 3.5" SAS/SATA (HDD/SSD), max 216TB
Up to 16 x 2.5" SAS/SATA (HDD/SSD), max 61TB
Up to 32 x 2.5” SAS/SATA (HDD/SDD), max 122TB
Up to 16 x 2.5” with up to 8 NVMe, SAS/SSD/NVMe (HDD/SDD), max 112TB
Storage Controllers
Internal Controllers
PERC H330, H730P, H740P, HBA330
External Controller (RAID)
H840, 12Gbps SAS HBA
Software RAID
S140
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB, 480 GB
Internal Dual SD Module
Management
Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
Redhat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
1100W 48VDC, 1100W 380HVDC, 750W 240HVDC, 495W, 750W, 1100W, 1600W, 2000W, 2400W, Platinum
750W, Titanium
Hot plug power supplies with full redundancy option
Up to 8 hot plug fans with full redundancy
Ports
Network Options
2 x 10GbE
Front Ports
1 x Dedicated iDRAC micro-USB
1 x USB 2.0
1 x USB 3.0
6 x USB 2.0/3.0
Slots
PCIe
8 x Gen 3 slots (4 x 8)
8 x Gen 3 slots (4 x 16)
Video Card
1 x VGA
Bezel
Optional LCD bezel or security bezel
Form Factor
5U Tower or Rack Server
Dimensions & Weight
Height
434.5mm (17.1") (base height)
443.5mm (17.5”) (with foot)
Width
217.9mm (8.6") (base width)
304.5mm (12.0”) (with foot)
Depth
692.8mm (27.3")
Weight
42.36kg (93.4lbs.) (Maximum with all drives 32 x 2.5 inch)
49.7kg (109.5) (Maximum with all drives 18 x 3.5 inch)
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution.
Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 RDIMM 2666MHz
2TB 7.2K RPM NLSAS 12Gbps 512n 3,5 inch hotplug
Up to 5 PCIe Gen3 slots
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330
DVD+/-RW
Redundant Power Supply (0+1), 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB 2666 DDR4 Ecc Unbuffered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
2 slots PCIe Gen 3.0 slots
BC5720DP On-Board LOM 1GBE Dual Port
PERC H330
DVD+/-RW
Power Supply (0+1) 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB DDR4 2666 MHz Unbuffered DIMMs
1TB 7.2K RPM SATA 6Gbps 512n 3.5in Cabled Hard Drive
4 slots PCIe
On-Board LOM 1GBE
PERC H330
DVD+/-RW Internal
365W
Intel Xeon E-2224G 3.5GHz, 8M cache, 4C/4T, turbo (71W)
8GB 2666MT/s DDR4 ECC UDIMM
1TB 7.2K RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive
1 X Gen3 slot (x16), 2 X Gen3 slot (x4), 1 X PCI
1 x 1GbE
Intel® VROC 6.x
8x DVD+/-RW 9.5mm Optical Disk Drive
300W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5 HYB CARR
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
2TB 7.2K RPM NLS 12Gbps 512n 3.5 Hotplug
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
