Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
2TB 7.2K RPM NLS 12Gbps 512n 3.5 Hotplug
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W

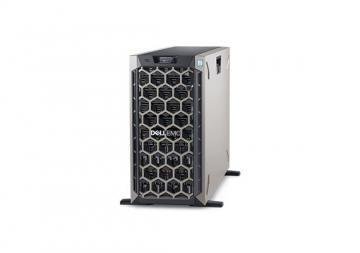

Máy chủ Dell PowerEdge T640 - PE T640 Chassis 8x3.5
Form Factor: Tower or rack, 5U
Processor: Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
Memory: 16GB DDR4 2666Mhz ECC Registered DIMMs
Hard Drive: 2TB 7.2K RPM NLS 12Gbps 512n 3.5 Hotplug
Raid Controller: PERC H730P RAID Controller, 2Gb NV Cache, Minicard
Network Controller: On-Board Dual-Port 10GbE LOM
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: Up to 8 PCIe Gen3 slots
Remote management : iDRAC9 Enterprise with Lifecycle Controller
Power Supply: Redundant Power Supply (1+1), 750W
Tech Specs & Customization
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Bezel
Optional LCD bezel or security bezel
Dimensions & Weight
Height
434.5mm (17.1") (base height)
443.5mm (17.5”) (with foot)
Width
217.9mm (8.6") (base width)
304.5mm (12.0”) (with foot)
Depth
692.8mm (27.3")
Weight
42.36kg (93.4lbs.) (Maximum with all drives 32 x 2.5 inch)
49.7kg (109.5) (Maximum with all drives 18 x 3.5 inch)
Drive Bays
Up to 8 or 18 x 3.5” SAS/SATA (HDD/SSD) max 216TB or up to 16 x 2.5” SAS/SATA (HDD/SSD) max 61TB or up to 32 x 2.5” SAS/SATA (HDD/SSD) max 122TB or up to 16 x 2.5 SAS/SATA (HDD/SSD) + 8x NVMe SSD max 112TB
GPU
GPU options: 4 x 300W (DW) or 8 x 150W (SW)
NVIDIA Tesla P100,P40, K80M, M60, M10, AMD S7150, S7150X2
I/O and Ports
2 x 10GbE LOM (1GbE/10GbE)
8 x USB (1 x USB 2.0. 1 x USB 3.0, 6 x USB 2.0/3.0),
Dedicated iDRAC Direct Micro-USB
Video card: VGA
Up to 8 PCIe Gen3 slots
Memory*
DIMM Speed
Up to 2993 MT/s
Memory Type
RDIMM
LRDIMM
NVDIMM
Memory Module Slots
24 DDR4 DIMM slots (12 NVDIMM only)
Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 3TB
LRDIMM 3TB*
NVDIMM 192GB
Management
Embedded / At-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs
OpenManage Integrations
Microsoft Systems Center
VMware vCenter
BMC software (available from BMC)
OpenManage Connections
Nagios Core and Nagios XI
HPE Operations Manager i (OMi)
Power Supplies
Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, 2000W and 2400W; 48VDC 1100W, 240HVDC 750W
Hot plug power supplies with full redundancy
Up to 8 fans with N-1 redundancy (6 hot-pluggable fans and 2 external fans)
Security
TPM 1.2/2.0 optional
Cryptographically signed firmware
Hardware Root of Trust
Secure Boot
System Lockdown
System Erase
Supported Operating Systems
Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Storage Controllers
Internal Controllers
PERC H330, H730p, H740p, HBA330, H330
Software RAID
S140
External HBAs (non-RAID)
12Gbps SAS HBA
External PERC (RAID)
H840
Boot Optimized Storage Subsystem
HWRAID 2 x M.2 SSDs 120GB or 240 GB
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.8 TB 10K RPM SAS 12Gbps 512e 2.5in , 3.5inch Hot-plug
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 RDIMM 2666MHz
2TB 7.2K RPM NLSAS 12Gbps 512n 3,5 inch hotplug
Up to 5 PCIe Gen3 slots
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330
DVD+/-RW
Redundant Power Supply (0+1), 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB 2666 DDR4 Ecc Unbuffered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
2 slots PCIe Gen 3.0 slots
BC5720DP On-Board LOM 1GBE Dual Port
PERC H330
DVD+/-RW
Power Supply (0+1) 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB DDR4 2666 MHz Unbuffered DIMMs
1TB 7.2K RPM SATA 6Gbps 512n 3.5in Cabled Hard Drive
4 slots PCIe
On-Board LOM 1GBE
PERC H330
DVD+/-RW Internal
365W
Intel Xeon E-2224G 3.5GHz, 8M cache, 4C/4T, turbo (71W)
8GB 2666MT/s DDR4 ECC UDIMM
1TB 7.2K RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive
1 X Gen3 slot (x16), 2 X Gen3 slot (x4), 1 X PCI
1 x 1GbE
Intel® VROC 6.x
8x DVD+/-RW 9.5mm Optical Disk Drive
300W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5 HYB CARR
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
