Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 RDIMM 2666MHz
2TB 7.2K RPM NLSAS 12Gbps 512n 3,5 inch hotplug
Up to 5 PCIe Gen3 slots
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330
DVD+/-RW
Redundant Power Supply (0+1), 495W

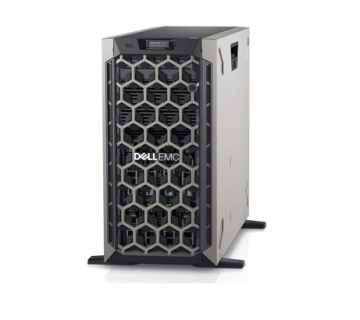

Máy chủ Dell PowerEdge T440 - PE T440 Chassis 8x3.5'' Hotplug
Form Factor: Tower
Processor:Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
Memory: 16GB DDR4 2666Mhz ECC Registered DIMMs
Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM
Raid Controller: PERC H330 RAID Controller
Hard Drive: 2TB 7.2K RPM NLSAS 12Gbps 512n 3,5 inch hotplug
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: Up to 5 PCIe Gen3 slots
Remote management : iDRAC9 Enterprise with Lifecycle Controller
Power Supply: Redundant Power Supply (0+1), 495W
Processor Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Operating System: Dell T440 hỗ trợ hệ điều hành
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Accelerators:Up to one NVIDIA Quadro P4000 (APOS/Customer kit only)
Memory: DIMM Speed & Up to 2666 MT/s
Memory Type: RDIMM& LRDIMM
Memory Module Slots: 16 DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM: RDIMM 512GB & LRDIMM 1TB
Storage : Front Bays
Up to 8 x 3.5" SAS/SATA (HDD/SSD) max 128TB
Up to 16 x 2.5" SAS/SATA (HDD/SSD) max 61TB
Storage Controllers
Internal Controllers: PERC H330, H730P, H740P, HBA330
External Controllers RAID: H840, 12Gbps SAS HBA
Software RAID: S140
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HW RAID 2 x M.2 SSDs 240GB or 480GB
Internal Dual SD Module
Management: Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
450W Gold
495W Platinum
750W Platinum
1100W Platinum
Up to 2 hot plugs fans with full redundancy
Ports: Network Options
2 x 1GbE LOM
(optional) LOM Riser 2 x 1GbE, or
2 x 10GbE SFP, or
2 x 10GbE BaseT
Front Ports
1 x Dedicated iDRAC direct USB
1 x USB 2.0
1 x USB 3.0 (optional)
1 x Video
Rear Ports
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
Slots: PCIe
2 x Gen3 slots (x 4)
2 x Gen3 slots (x 8)
1 x Gen3 slot (x16)
Bezel: Optional LCD bezel or security bezel
Form Factor: 5U Tower or Rack Server
Dimensions & Weight
Width
218.0mm (8.6") (base width)
304.5mm (12.0”) (with foot)
Depth
594.82mm (23.4")
Weight
29.3Kg (64.6lbs.) 8-drive bay chassis
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution.
Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.8 TB 10K RPM SAS 12Gbps 512e 2.5in , 3.5inch Hot-plug
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB 2666 DDR4 Ecc Unbuffered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
2 slots PCIe Gen 3.0 slots
BC5720DP On-Board LOM 1GBE Dual Port
PERC H330
DVD+/-RW
Power Supply (0+1) 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB DDR4 2666 MHz Unbuffered DIMMs
1TB 7.2K RPM SATA 6Gbps 512n 3.5in Cabled Hard Drive
4 slots PCIe
On-Board LOM 1GBE
PERC H330
DVD+/-RW Internal
365W
Intel Xeon E-2224G 3.5GHz, 8M cache, 4C/4T, turbo (71W)
8GB 2666MT/s DDR4 ECC UDIMM
1TB 7.2K RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive
1 X Gen3 slot (x16), 2 X Gen3 slot (x4), 1 X PCI
1 x 1GbE
Intel® VROC 6.x
8x DVD+/-RW 9.5mm Optical Disk Drive
300W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5 HYB CARR
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2666Mhz ECC Registered DIMMs
2TB 7.2K RPM NLS 12Gbps 512n 3.5 Hotplug
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
