(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon E5-2609 v4 1.7GHz,20M Cache,6.4GT/s QPI,8C/8T (85W)
1 x 16GB DDR4 ECC Registered DIMMs
None HDD Ent 3.5" Hotplug
Support for up to 5 x PCIe slots, half-length, low-profile): 3 x PCIe 3.0; 2 x PCIe 2.0
On-Board Broadcom 5720 Quad Port 1Gb LOM
PERC H730 RAID Controller, 1GB NV Cache
DVD+/-RW, SATA, Internal
Single, Hot-plug Power Supply (1+0), 495W / 750W

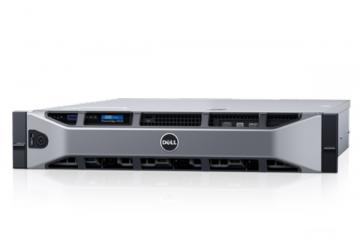

Máy chủ Dell PowerEdge R530 E5-2609v4 8x3.5
Form Factor: 2U rackmount
Processor: 1 x Intel Xeon c 1.7GHz,20M Cache,6.4GT/s QPI,8C/8T (85W)
Memory: 1 x 16GB DDR4 ECC Registered DIMMs
Hard Drive: None HDD Ent 3.5" Hotplug
Support Up to 8 x 3.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Raid Controller: PERC H730 RAID Controller, 1GB NV Cache
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: Support for up to 5 x PCIe slots, half-length, low-profile): 3 x PCIe 3.0; 2 x PCIe 2.0
Network Controller: On-Board Broadcom 5720 Quad Port 1Gb LOM
Remote management : iDRAC8 Enterprise
Rail kit: Sliding Rails Rackmount 2U Kit
Power Supply: Single, Hot-plug Power Supply (1+0), 495W / 750W
Tech Specs & Customization
Processor
Intel® Xeon® processor E5-2600 v4 product family
Processor sockets: 2
Operating System
Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft® Windows Server® 2016
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
Availability
ECC memory
Single Device Data Correction (SDDC)
Spare Rank
Hot-plug hard drives
Hot-plug redundant power
iDRAC8 with Lifecycle Controller
Support for HA clustering
Virtualization-ready
Internal Dual SD Module (Failsafe Hypervisor)
TPM 1.2
Chassis
2u rack:
H: 8.68cm
W: 48.24cm
D: 66.8cm
Chipset
Intel C610 series chipset
Communications
Optional add-in NICs, HBAs
Drive Bays
Up to 8 x 3.5” SAS, SATA, nearline SAS,SSD drives
Memory
DDR4 DIMMs at up to 2133MT/s; 12 DIMM slots: 4GB/8GB/16GB/32GB
Hypervisor Support
Citrix® XenServer®
Microsoft® Windows Server® 2008, with Hyper-V®
VMware vSphere ESXi
Management
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)
16GB vFlash media (upgrade)
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft® System Center
Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
HP Operations Manager
IBM Tivoli® Netcool® and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager
Network Controller
4 x 1 GbE LOMs
Power
495W AC, 750W AC, 1100W AC, hot-plug PSU; 1100W -48V DC hot-plug PSU; 450W AC cabled PSU
RAID Controllers
Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830
Slots
Support for up to 5 x PCIe slots, half-length, low-profile): 3 x PCIe 3.0; 2 x PCIe 2.0
Storage
SAS, SATA, nearline SAS, SSD
Graphics Card
Video Type :Integrated Matrox G200 with iDRAC8
Video Memory: 16 MB shared with iDRAC8 application memory
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 inch Hotplug
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5'' Hot-plug Hard Drive
Support Up to 8 x Gen3 slots, Up to 4 x16
5720 QP 1Gb Network
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
Support Up to 8 x Gen3 slots, Up to 4 x16
5720 QP 1Gb Network
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 2.5" Hot Plug Hard Drive
Support Up to 8 x Gen3 slots, Up to 4 x16
5720 QP 1Gb Network
PERC H730P
DVD+/-RW
Power Supply (1+1), 750W
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
Up to 5 x PCIeGen 3 slots
Broadcom 5720 Dual Port 1Gb LOM
PERC H730P
DVD+/-RW
Redundant (0+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive
Options to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
PERC H730P
Options
Redundant Power Supply (1+1), 750W
