    DELL RACK 2U

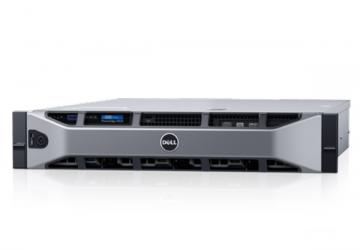

Dell PowerEdge R730

Giá:0 VNĐ

(Giá chưa bao gồm thuế VAT 10%)

    Tình trạng: Hết hàng

    Mã sản phẩm: E5-2609v4 8x3.5

    Intel Xeon E5-2609 v4 1.7GHz,20M Cache,6.4GT/s QPI,8C/8T (85W)

    1 x 16GB DDR4 ECC Registered DIMMs

    None HDD Ent 3.5" Hotplug

    Support Up to 7 x PCIe 3.0 plus dedicated PERC slot

    On-Board Broadcom 5720 Quad Port 1Gb LOM

    PERC H730 RAID Controller, 1GB NV Cache

    DVD+/-RW, SATA, Internal

    Dual, Hot-plug, Redundant Power Supply (1+1), 750W

MÁY CHỦ DELL POWEREDGE R730 E5-2609v4 8x3.5

Form Factor: 2U rackmount

Processor: 1 x Intel Xeon E5-2609 v4 1.7GHz,20M Cache,6.4GT/s QPI,8C/8T (85W)

Memory: 1 x 16GB DDR4 ECC Registered DIMMs

Hard Drive: None HDD Ent 3.5" Hotplug

Support Up to 8 x 3.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA

Raid Controller: PERC H730 RAID Controller, 1GB NV Cache

Optical Drive: DVD+/-RW, SATA, Internal

PCI-Express Slots: Support Up to 7 x PCIe 3.0 plus dedicated PERC slot

Network Controller: On-Board Broadcom 5720 Quad Port 1Gb LOM

Remote management : iDRAC8 Enterprise

Rail kit:Sliding Rails Rackmount 2U Kit

Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 750W



Processor

  • Intel® Xeon® processor E5-2600 v4 product family

Operating System

  • Microsoft® Windows Server® 2008 R2
    Microsoft Windows Server 2012
    Microsoft Windows Server 2012 R2
    Microsoft® Windows Server® 2016
    Novell® SUSE® Linux Enterprise Server
    Red Hat® Enterprise Linux
    VMware® ESX®

Chipset

  • Intel C610 series chipset

Memory1

  • Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

Embedded Hypervisor (Optional)

  • Optional supported hypervisors:

    Microsoft® Windows Server® 2012, with Hyper-V®

    Citrix® XenServer®

    VMware® vSphere® ESXiTM

Storage

  • HDD: SAS, SATA, nearline SAS; SSD: SAS, SATA
    16 x 2.5” – up to 29TB via 1.8TB hot-plug SAS hard drives
    8 x 3.5” – up to 64TB via 8TB hot-plug nearline SAS hard drives

Drive Bays

  • Internal hard drive bay and hot-plug backplane:
    Up to 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
    Up to 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA

Slots

  • Slot configuration #1:
    Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
    Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
    Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
    Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
    Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
    Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
    Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
    Dedicated RAID card slot

    Slot configuration #2:
    Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
    Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
    Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
    Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
    Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
    Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
    Dedicated RAID card slot

RAID Controllers

  • Internal:
    PERC S130
    PERC H330
    PERC H730
    PERC H730P
    External:
    PERC H830

Network Controller

  • 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb

Communications

  • Broadcom® 5719 quad-port 1Gb NIC
    Broadcom 5720 dual-port 1Gb NIC
    Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
    Broadcom 57810 dual-port 10Gb Base-T network adapter
    Intel® Ethernet I350 dual-port 1Gb server adapter
    Intel Ethernet I350 quad-port 1Gb server adapter
    Intel Ethernet X540 dual-port 10GBASE-T server adapter
    Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
    Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
    Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
    Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
    Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
    Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
    Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
    QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
    QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
    Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
    Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Power

  • 1100W AC, 86 mm (Platinum)
    1100W DC, 86 mm (Gold)
    750W AC, 86 mm (Platinum)
    750W AC, 86 mm (Diamond)
    495W AC, 86 mm (Platinum)

Availability

  • ECC memory
    Hot-plug hard drives
    Hot-plug redundant cooling
    Hot-plug redundant power
    iDRAC8
    Internal Dual SD Module
    Single Device Data Correction (SDDC)
    Spare Rank
    Tool-less chassis
    Support for high availability clustering and virtualization
    Proactive systems management alerts
    iDRAC8 with Lifecycle Controller

Chassis

  • Dimensions: H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)

Management

  • Dell OpenManage portfolio of systems management solutions, including:
    OpenManage Essentials console
    iDRAC8 with Lifecycle Controller
    iDRAC Direct
    iDRAC Quick Sync
    OpenManage Mobile

Regulatory



Tackle almost any workload

The incredible versatility of the PowerEdge R730 server delivers outstanding functionality in just 2U of rack space. With the combination of powerful processors, large memory, fast storage options and GPU accelerator support, the R730 performs exceptionally well in a number of demanding environments.

PowerEdge R730 - Virtualization and cloud applications

Virtualization and cloud applications

With the Intel® Xeon® processor E5-2600 v4 product family and up to 24 DIMMs of DDR4 RAM, the R730 has the processing cycles and threads and large memory footprint necessary to deliver more, larger and higher-performing virtual machines for data centers and cloud platforms.

Highly scalable storage, with up to 16 x 12Gb SAS drives and the high-performance 12Gb PowerEdge RAID Controller (PERC9), can greatly accelerate data access for your virtualized environment. In addition, the R730 can take advantage of optional SanDisk® DAS Cache application acceleration technology for even faster data access.


VDI and HPC

The option for up to two 300W dual-width accelerators/GPUs (choose from Intel® Xeon Phi™, NVIDIA® Tesla® and AMD FirePro™) supports environments that require processing acceleration, including graphics-intensive virtual desktop infrastructure (VDI) implementations, such as CAD/CAM and other research and development applications. Seven PCIe Gen3 expansion slots plus a dedicated slot for a RAID controller further enhance IO flexibility to help make the R730 an ideal compute node for IT as a service (XaaS) providers as well as high-performance computing (HPC) and medical-imaging solutions.
Poweredge R730 - VDI and HPC


Reliable business processing and decision support

The popular-sized 2S/2U R730 can be easily configured as a reliable, general-purpose server for business-critical applications, with scale-out storage, automated management and high-availability features, such as:

• Redundant power supply units (PSUs)
• Hot-plug and swappable PSUs, HDDs and fans
• Dual SD card option for failsafe hypervisors


Simplify and automate your IT management tasks

Manage your data center servers the way you want: individually, collectively, in-person, remotely or with your smartphone — it’s your choice. Consistent administration and 3rd-party integration ensure seamless management of PowerEdge servers.

Simplify administration   Simplify administration of PowerEdge servers with the embedded intelligence of the integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller and with the robust, timesaving management features of the entire Dell OpenManage portfolio.

Agent-free management   Agent-free management from iDRAC8 with Lifecycle Controller offers real-time monitoring for the server and internal storage devices. It also monitors server health, multiple internal parameters and system performance without requiring agents to be installed in the server operating system — agents which could require additional upkeep and consume valuable CPU time.

Zero-touch automated deployment   Zero-touch automated deployment discovers and auto-configures Dell servers by using configuration files stored in designated locations on an internal network, which can reduce setup time and manual entry errors. Administrators can simply rack, cable and walk away.

Automated server updates   Automated server updates synchronize servers to firmware baselines stored at designated locations on an internal network to simplify firmware updates.

The Tech Support Report    The Tech Support Report, automatically maintained by iDRAC, is a continuously updated health and status report that monitors over 5,000 key system parameters and can help cut time needed to identify and resolve server issues.

Poweredge R730 - Monitor and manage from anywhere

Monitor and manage from anywhere

Administer systems from your smartphone, laptop or at the system with both local and remote management options.
  • Use your smartphone with the OpenManage Mobile app to securely monitor remote systems, or connect to a server via Near Field Communications (NFC) to access a status report and logs using the iDRAC Quick Sync feature.
  • Use a USB memory stick to upload configurations files for BIOS, iDRAC, PERC, LAN on motherboard (LOM) and network interface card (NIC) updates with the iDRAC Direct feature.
  • Connect a laptop via USB to a specific server’s embedded iDRAC8 management-console interface for robust "at the system" management.


Accelerate IT service deployment

Streamline infrastructure provisioning, speed up workload deployment and simplify IT service delivery through the unified console and highly intuitive user interface of Active System Manager. Enhanced for the latest generation of PowerEdge servers, it features:


• Template-based server and IO configurations, identity management and service migration capabilities

• Fast workload deployment with an expanding out-of-box template library

• Cloud enablement with support for infrastructure as a service (IaaS) and platform as a service (PaaS), including Red Hat and VMware solutions


Poweredge R730 - Stocking the future-ready data center

Stocking the future-ready data center

With high-performance processing, large memory capacity and innovative local storage options offering greater scalability throughout the portfolio, the latest generation of PowerEdge servers meets your needs today, with the hardware, headroom and simplified management to adapt as your workloads demand.

Pro Support


Dell Poweredge R730 Tech Specs & Customization

Processor

Intel® Xeon® processor E5-2600 v4 product family

Operating System

Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft® Windows Server® 2016
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®

Availability

ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller

Chassis

Dimensions: H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)

Chipset

Intel C610 series chipset

Communications

Broadcom 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
QLogic 57810 dual-port 10Gb DA/SFP+ CNA
QLogic 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Drive Bays

Internal hard drive bay and hot-plug backplane:
Up to 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
Up to 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA

Embedded Hypervisor (Optional)

Optional supported hypervisors:

Microsoft® Windows Server® 2012, with Hyper-V®

Citrix® XenServer®

VMware® vSphere® ESXiTM

Memory

Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

Management

Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
iDRAC Direct
iDRAC Quick Sync
OpenManage Mobile

Network Controller

4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb

Power

1100W AC, 86 mm (Platinum)
1100W DC, 86 mm (Gold)
750W AC, 86 mm (Platinum)
750W AC, 86 mm (Diamond)
495W AC, 86 mm (Platinum)

RAID Controllers

Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830

Slots

Slot configuration #1:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Dedicated RAID card slot

Slot configuration #2:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Dedicated RAID card slot

Storage

HDD: SAS, SATA, nearline SAS; SSD: SAS, SATA
16 x 2.5” – up to 29TB via 1.8TB hot-plug SAS hard drives
8 x 3.5” – up to 64TB via 8TB hot-plug nearline SAS hard drive

Hệ điều hành / Operating System / Software




đồng ý chọn cầu hình

    sản phẩm cùng loại

  • Dell PowerEdge R740XD
    • Thông số kỹ thuật:

    Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)

    16GB DDR4 3200Mhz ECC Registered DIMMs

    4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 inch Hotplug

  • Dell PowerEdge R740
    • Thông số kỹ thuật:

    Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)

    16GB DDR4 3200Mhz ECC Registered DIMMs

    1.2TB 10K RPM SAS 12Gbps 512n 2.5'' Hot-plug Hard Drive

    Support Up to 8 x Gen3 slots, Up to 4 x16

    5720 QP 1Gb Network

    PERC H730P

    DVD+/-RW

    Power Supply (1+1), 750W

  • Dell PowerEdge R740
    • Thông số kỹ thuật:

    Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)

    16GB DDR4 3200Mhz ECC Registered DIMMs

    2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug

    Support Up to 8 x Gen3 slots, Up to 4 x16

    5720 QP 1Gb Network

    PERC H730P

    DVD+/-RW

    Power Supply (1+1), 750W

  • Dell PowerEdge R740
    • Thông số kỹ thuật:

    Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)

    16GB DDR4 3200Mhz ECC Registered DIMMs

    1.2TB 10K RPM SAS 12Gbps 2.5" Hot Plug Hard Drive

    Support Up to 8 x Gen3 slots, Up to 4 x16

    5720 QP 1Gb Network

    PERC H730P

    DVD+/-RW

    Power Supply (1+1), 750W

  • Dell PowerEdge R540
    • Thông số kỹ thuật:

    Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)

    16GB DDR4 3200Mhz ECC Registered DIMMs

    4TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug

    Up to 5 x PCIeGen 3 slots

    Broadcom 5720 Dual Port 1Gb LOM

    PERC H730P

    DVD+/-RW

    Redundant (0+1), 750W

  • Dell PowerEdge R740XD Silver 4210
    • Thông số kỹ thuật:

    Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)

    16GB DDR4 2933Mhz ECC Registered DIMMs

    1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive

    Options to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots

    4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE

    PERC H730P

    Options

    Redundant Power Supply (1+1), 750W

    Công ty TNHH Công Nghệ NECTEC

    Địa chỉ: 16/24 Trần Quang Diệu, Phường 13, Quận 03, TP Hồ Chí Minh, Việt Nam

    Giấy ĐKKD số: 0318066267 - Ngày cấp: 27/09/2023

    Nơi cấp: Sở Kế hoạch và Đầu tư TP.HCM

    Hotline: 0968 508 508 (24/7)

    ĐĂNG KÍ NHẬN BẢN TIN

    Đăng ký Email để nhận những thông tin sự kiện, tin tức khuyến mãi mới nhất từ chúng tôi!

      ĐĂNG KÝ
    Copyright © 2023 Bản quyền thuộc về CÔNG TY TNHH Công Nghệ Nectec
    TOP
    hỗ trợ khách hàng«
