Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon E3-1220 v6 3.0GHz, 8M cache, 4C/4T, turbo (72W)
8GB DDR4 2400 MHz Unbuffered DIMMs
None Support 4 x 3.5" cabled HDD
4 slots PCIe
BCM5720 GbE LOM
PERC S130 Raid Onboard
DVD+/-RW Sata
290W Power

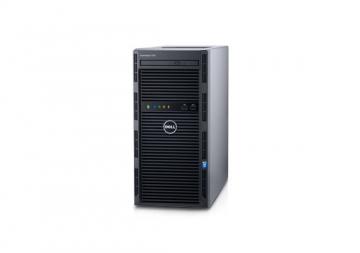

Máy chủ Server Dell Poweredge T130 E3 1220v6 4x3.5
Form Factor: Tower
Processor: Intel Xeon E3-1220 v6 3.0GHz, 8M cache
Memory: 1 x 8GB PC4-19200 ECC 2400 MHz Unbuffered DIMMs
Hard Drive: None Support 4 x 3.5" cabled HDD
Network Controller: On-Board LOM 1GBE Dual Port (BCM5720 GbE LOM)
Raid Controller: Dell Controller PERC S130 Raid Onboard
Remote management :iDRAC8, Basic
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: 4 slots PCIe
Power Supply: 290W Power
Server Dell Poweredge T130 Tech Specs & Customization
Processor
1 processor from the following product families:
Intel® Xeon® processor E3-1200 v6 product family
Intel Pentium®
Intel Core i3®
Intel Celeron®
Operating System
Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, x64
Microsoft® Windows Server® 2016
Red Hat® Enterprise Linux®
VMware vSphere® ESXi®
SUSE® Linux Enterprise Server®
Chassis Mini tower
Chipset
Intel C236
Communications 2 X 1GbE LOM
Dimensions & Weight
Height: 14.17 in / 36.0 cm
Width: 6.89 in / 17.5 cm
Depth: 17.12 in / 43.5 cm
Drive Bays 4 x 3.5” cabled HDDs
Device Access
8 total USB:
Rear USB: 2 x USB 3.0 plus 4 x USB 2.0
Front USB: 1 x USB 2.0 plus 1 x USB 3.0
Embedded Hypervisor (Optional)
Hypervisor Support
Microsoft Windows Server with Hyper-V®
VMware® vSphere® ESXi®
Memory Architecture: Up to 2400MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Sockets: 4
Maximum RAM: Up to 64GB
Management
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware vCenter®
Dell OpenManage Connections:
HP Operations Manager
IBM Tivoli® Netcool®
CA Network and Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager
Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)
16GB vFlash media (upgrade)
Network Controller
Broadcom® BCM5720
Power 290W cabled PSU
RAID Controllers S130,H330,H730, H830
Slots 4 slots:
1 x8 PCIe 3.0 (x16 connector)
1 x4 PCIe 3.0 (x8 connector)
1 x4 PCIe 3.0 (x8 connector)
1 x1 PCIe 3.0 (x1 connector)
Storage
3.5” Enterprise SATA 7.2K HDDs
3.5” nearline SAS 7.2K HDDs
3.5” 7.2K SATA entry drives
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.8 TB 10K RPM SAS 12Gbps 512e 2.5in , 3.5inch Hot-plug
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 RDIMM 2666MHz
2TB 7.2K RPM NLSAS 12Gbps 512n 3,5 inch hotplug
Up to 5 PCIe Gen3 slots
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330
DVD+/-RW
Redundant Power Supply (0+1), 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB 2666 DDR4 Ecc Unbuffered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
2 slots PCIe Gen 3.0 slots
BC5720DP On-Board LOM 1GBE Dual Port
PERC H330
DVD+/-RW
Power Supply (0+1) 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB DDR4 2666 MHz Unbuffered DIMMs
1TB 7.2K RPM SATA 6Gbps 512n 3.5in Cabled Hard Drive
4 slots PCIe
On-Board LOM 1GBE
PERC H330
DVD+/-RW Internal
365W
Intel Xeon E-2224G 3.5GHz, 8M cache, 4C/4T, turbo (71W)
8GB 2666MT/s DDR4 ECC UDIMM
1TB 7.2K RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive
1 X Gen3 slot (x16), 2 X Gen3 slot (x4), 1 X PCI
1 x 1GbE
Intel® VROC 6.x
8x DVD+/-RW 9.5mm Optical Disk Drive
300W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5 HYB CARR
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
