Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
1 x Intel Xeon Silver 4110 11M Cache, 2.10 GHz
1 x 16GB DDR4 2666Mhz ECC Registered DIMMs
Support Up to 8 x 3.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Up to 5 PCIe Gen3 slots
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330 RAID Controller
DVD+/-RW, SATA, Internal
Redundant Power Supply 495W

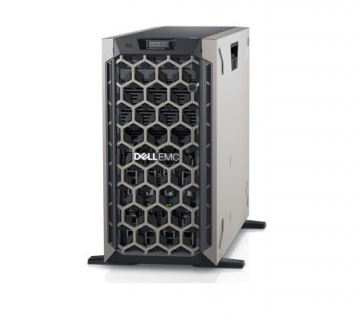

Server Dell Poweredge T440 Silver 4110 8x3.5
Form Factor: Tower
Processor:1 x Intel Xeon Silver 4110 11M Cache, 2.10 GHz
Memory: 1 x 16GB DDR4 2666Mhz ECC Registered DIMMs
Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM
Raid Controller: PERC H330 RAID Controller
Hard Drive: Option
Support Up to 8 x 3.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Optical Drive: DVD+/-RW, SATA, Internal
PCI-Express Slots: Up to 5 PCIe Gen3 slots
Remote management : iDRAC9 Enterprise with Lifecycle Controller
Power Supply: Redundant Power Supply (1+1), 750W
Server Dell Poweredge T440 Tech Specs & Customization
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Bezel
Optional LCD bezel or security bezel
Dimensions & Weight
Width
218.0mm (8.6") (base width)
304.5mm (12.0”) (with foot)
Depth
594.82mm (23.4")
Weight
29.3Kg (64.6lbs.) 8-drive bay chassis
I/O and Ports
Network Options
2 x 1GBE
Front Ports
1 x Dedicated iDRAC micro-USB
5 x USB 2.0
3 x USB 3.0
Rear Ports
1 x Serial
1 x VGA
Internal Ports
1 x USB 3.0
Memory*
DIMM Speed
Up to 2666 MT/s
Memory Type
RDIMM
LRDIMM
Memory Module Slots
16 DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 512GB
LRDIMM 1TB*
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
450W Gold
495W Platinum
750W Platinum
1100W Platinum
Up to 2 hot plugs fans with full redundancy
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Supported Operating Systems
Canonical® Ubuntu® LTS
Citrix® Hypervisor®
Microsoft® Windows Server® LTSC with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Storage Controllers
Internal Controllers
PERC H330, H730p, H740p, HBA330
Software RAID
S140
External HBAs (non-RAID)
12Gbps SAS HBA
External PERC (RAID)
H840
Boot Optimized Storage Subsystem
HWRAID 2 x M.2 SSDs 120GB or 240 GB
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Slots
PCIe
2 x Gen3 slots (x 4)
2 x Gen3 slots (x 8)
1 x Gen3 slot (x16)
Accelerators
Up to one NVIDIA Quadro P4000 (APOS/Customer kit only)
Form Factor
5U Tower or Rack Server
Storage
Front Bays
Up to 8 x 3.5" SAS/SATA (HDD/SSD) max 112TB
Up to 16 x 2.5" SAS/SATA (HDD/SSD) max 123T
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.8 TB 10K RPM SAS 12Gbps 512e 2.5in , 3.5inch Hot-plug
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 RDIMM 2666MHz
2TB 7.2K RPM NLSAS 12Gbps 512n 3,5 inch hotplug
Up to 5 PCIe Gen3 slots
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330
DVD+/-RW
Redundant Power Supply (0+1), 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB 2666 DDR4 Ecc Unbuffered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
2 slots PCIe Gen 3.0 slots
BC5720DP On-Board LOM 1GBE Dual Port
PERC H330
DVD+/-RW
Power Supply (0+1) 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB DDR4 2666 MHz Unbuffered DIMMs
1TB 7.2K RPM SATA 6Gbps 512n 3.5in Cabled Hard Drive
4 slots PCIe
On-Board LOM 1GBE
PERC H330
DVD+/-RW Internal
365W
Intel Xeon E-2224G 3.5GHz, 8M cache, 4C/4T, turbo (71W)
8GB 2666MT/s DDR4 ECC UDIMM
1TB 7.2K RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive
1 X Gen3 slot (x16), 2 X Gen3 slot (x4), 1 X PCI
1 x 1GbE
Intel® VROC 6.x
8x DVD+/-RW 9.5mm Optical Disk Drive
300W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5 HYB CARR
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
