Mã sản phẩm: 4x3,5 E-2224
Mã sản phẩm: AA101752
Mã sản phẩm: E-2224G 3x3,5 inch
Mã sản phẩm: E-2124 4 x 8TB
Mã sản phẩm: 42PT3430DW01
Mã sản phẩm: Silver 4114 8x3.5
Mã sản phẩm: 8x2.5
Mã sản phẩm: 877626-B21
Mã sản phẩm: SR530 7X08A02JSG
Mã sản phẩm: 42PT58DW12
(Giá chưa bao gồm thuế VAT 10%)
Intel Xeon E-2174G 3.8Ghz
Dell 8GB 2666 DDR4 Ecc Unbuffered DIMMs
Dell 1TB SATA 3.5" Hotplug Support 8x3.5 HDD or SAS
4 slots PCIe
BC5720DP On-Board LOM 1GBE Dual Port
PERC H330 RAID Controller
DVD+/-RW Internal
Redundant Power Supply (0+1) 495W

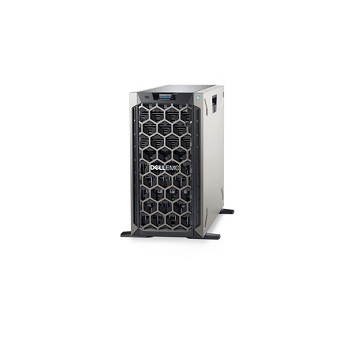

Máy chủ Dell PowerEdge T340
Form Factor: Tower
Processor:Intel Xeon E-2174G 3.8Ghz
Memory: Dell 8GB 2666 DDR4 Ecc Unbuffered DIMMs
Hard Drive: Dell 1TB SATA 3.5" Hotplug Support 8x3.5 HDD or SAS
Network Controller: BC5720DP On-Board LOM 1GBE Dual Port
Raid Controller: PERC H330 RAID Controller
Remote management :iDRAC9, Basic
Optical Drive: DVD+/-RW Internal
PCI Slots: 4 slots PCIe
Power Supply: Redundant Power Supply (0+1) 495W
Tech Specs & Customization
Processor
Up to one Intel® Xeon® E-2100 product family processor with up to 6 cores per processor
Up to one Intel® Pentium® G5500 processor up to 2 cores per processor
Up to one Intel® Core i3® 8100 processor up to 4 cores per processor
Up to one Intel® Celeron® G4900 processor up to 2 cores per processor
Bezel
Optional LCD or security bezel
Dimensions & Weight
Height
430.3mm (16.9")
Width
218.0mm (8.6")
Depth
603.0mm (23.7")
Weight
26kg (55.67lbs.)
*Dimensions do not include bezel, PSU handle, or tower foot
Memory*
DIMM Speed
Up to 2666MT/s
Memory Type
UDIMM
Memory Module Slots
4 x DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM
UDIMM 64GB
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BM Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
495W Platinum (Hot plug redundant)
350W Bronze (Cable)
Hot plug power supplies with full redundancy option
Slots
PCIe
1 x Gen3 slot (x16)
2 x Gen3 slots (x8)
1 x Gen3 slot (x1)
Video Card
1 x VGA
Supported Operating Systems
Canonical® Ubuntu® LTS
Citrix® Hypervisor®
Microsoft® Windows Server® LTSC with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Storage
Front Bays
Up to 8 x 3.5" SAS/SATA (HDD/SSD), max 112TB
(Also supports up to 8 x 2.5" SAS/SATA (HDD) in 3.5" hybrid drive carrier)
Storage Controllers
Internal Controllers
PERC H330, H730p, HBA330
Software RAID
S140
External HBAs (non-RAID)
12 Gbps SAS HBA
Boot Optimized Storage Subsystem
2 x M.2 240GB (RAID 1 or No RAID)
1 x M.2 240GB (No RAID only)
Security
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
Secure Erase
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
I/O and Ports
Network options
2 X 1GbE
Front ports
1 x Dedicated iDRAC micro-USB
1 x USB 3.0
Rear ports
1 x Serial
4 x USB 2.0
2 x USB 3.0
1 x VGA
Internal Ports
1 x USB 3.0
Form Factor
Tower Server
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40GHz)
16GB DDR4 3200Mhz ECC Registered DIMMs
1.8 TB 10K RPM SAS 12Gbps 512e 2.5in , 3.5inch Hot-plug
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 RDIMM 2666MHz
2TB 7.2K RPM NLSAS 12Gbps 512n 3,5 inch hotplug
Up to 5 PCIe Gen3 slots
On-Board Broadcom 5720 Dual Port 1Gb LOM
PERC H330
DVD+/-RW
Redundant Power Supply (0+1), 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB 2666 DDR4 Ecc Unbuffered DIMMs
2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
2 slots PCIe Gen 3.0 slots
BC5720DP On-Board LOM 1GBE Dual Port
PERC H330
DVD+/-RW
Power Supply (0+1) 495W
Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
8GB DDR4 2666 MHz Unbuffered DIMMs
1TB 7.2K RPM SATA 6Gbps 512n 3.5in Cabled Hard Drive
4 slots PCIe
On-Board LOM 1GBE
PERC H330
DVD+/-RW Internal
365W
Intel Xeon E-2224G 3.5GHz, 8M cache, 4C/4T, turbo (71W)
8GB 2666MT/s DDR4 ECC UDIMM
1TB 7.2K RPM SATA 6Gbps Entry 3.5in Cabled Hard Drive
1 X Gen3 slot (x16), 2 X Gen3 slot (x4), 1 X PCI
1 x 1GbE
Intel® VROC 6.x
8x DVD+/-RW 9.5mm Optical Disk Drive
300W
Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20GHz)
16GB DDR4 2933Mhz ECC Registered DIMMs
1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5 HYB CARR
Up to 8 PCIe Gen3 slots
2 x 10GbE LOM (1GbE/10GbE)
PERC H730P
DVD+/-RW
Redundant Power Supply (1+1), 750W
