DELL STOGAGE

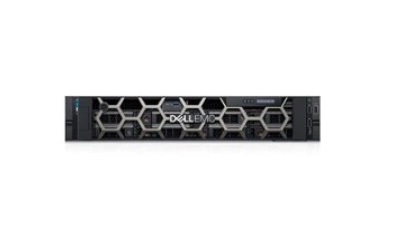

Dell Storage NX3240

Giá: Liên hệ

(Giá chưa bao gồm thuế VAT 10%)

Mã sản phẩm: Network Attached Storage

Hãng sản xuất :
Bảo hành :
Tình trạng: Hết hàng
Lượt xem: 2461

Thông số kĩ thuật
tài liệu kĩ thuật
Sản phẩm bạn quan tâm

Dell EMC NX3240 : Effectively manages both file and block data with advanced software for efficient, adaptable data sharing.
· Dual-socket, 2U rack mount NAS server

· Intel® Xeon® Bronze 3104 or 3106 or Silver 4114 processors

· Up to 64GB memory

· SATA, NL-SAS or SAS drive options

· Up to 16 hot-swap 3.5” drives for data; two 2.5” drives for OS

· Up to 192TB raw capacity

· Leveraging the PowerEdge R740xd server precision technology

Dell Storage NX3240 - Product Configurations

Storage Up to 12x3.5" HDDs in front bay, 4x3.5" HDDs in mid bay and 2x3.5” HDDs in rear bay (2.5” OS HDDs in carrier)

Max Internal Capacity 192TB raw capacity (with 12TB NL-SAS)

Types of Data File and Block (Microsoft iSCSI target)

Drive Capacities SATA (7.2K): 2TB, 4TB

NL-SAS (7.2K): 4TB, 8TB,

8TB FIPS, 10TB, 12TB SAS (10K): 600GB, 1.2TB,

1.2TB FIPs, 1.8TB SAS (15K): 600GB

External Expansion Not preconfigured for external expansion. To enable expansion add supported SAS HBA or PERC H840 card and attach MD1400/MD1420 expansion modules

Technical Highlights

Form Factor 2U rack-mount system
Single and Dual
Processor Intel Xeon Bronze 3104, 1.7G, 6C/6T, 8M Cache or Intel Xeon3106 1,7G, 8C/8T, 11M Cache or Intel Xeon Silver 4114, 2.2G, 10C/20T, 14M Cache
File Access Protocols CIFS, NFS, FTP, SMB3.0, SMB Direct (RDMA)
Block Access Protocols Microsoft iSCSI target
OS supported Microsoft Windows Storage Server 2016 Standard Edition
Internal RAID options Standard options: OS HDDs (on rear 2.5” HDDs) is always RAID1. Data HDDs can be configured from factory in RAID5 or RAID6 (minimum 4 HDDs)
PERC H730 (internal drives)
External RAID PERC H830 (optional)
Power
AC Power/Max Current Redundant and non-redundant hot-plug 750W and Redundant 1100W PSU
Chassis
Bezel LCD Bezel with Quick Sync 2 (at-the-box management)
Dimensions Height: 86.8mm (3.42”)
Width: 482.0mm (18.98”, with rack ears)
Maximum Depth: 715.5mm
Maximum weight: 28.1 kg (61.95 lbs)
Availability Hot-plug hard drives, hot-plug redundant power, hot-plug redundant cooling, ECC memory
Cluster Support Not recommended
Slots Four PCIe 3.0 slots (four with x8 bandwidth)
Systems/Data Management
Management Dell OpenManage Essentials, iDRAC9 Enterprise
Data protection feature Replication (DFS-R), Snapshots (VSS)
Optional TPM 1.2/2.0
