Mã sản phẩm: Network Attached Storage

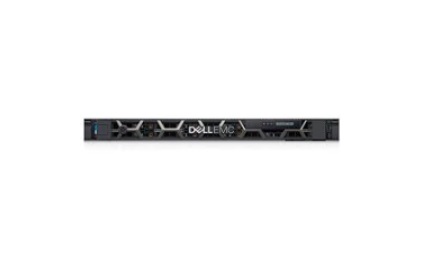

Dell EMC NX3340 Cluster-ready NAS that offers efficient deployment and integration with high availability to simplify data management.

· Dual-socket, 1U rack mount NAS server and gateway

· Intel Xeon Bronze 3106 or Silver 4114 processors

· Up to 64GB memory

· Two or four hot-swap 2.5” SAS drives for OS

· Leveraging the PowerEdge R640 server precision technology

Product Configurations

Storage 2x2.5” HDDs for OS (RAID 1) or 4x2.5” HDDs for OS (RAID 5)

Max Internal Capacity Leverages shared storage arrays attached via SAS, iSCSI or FC

Types of Data File and Block (Microsoft iSCSI target)

Drive Capacities NL-SAS (10K) 600GB for OS (2 or 4 drives required)

External Expansion Each platform in a clustered configuration

Technical Highlights

Form Factor 1U rack-mount system
Dual
Processor Intel Xeon Bronze 3106 1.7G, 8C/8T, 11M Cache or Intel Xeon Silver 4114, 2.2G, 10C/20T, 14M Cache
File Access Protocols CIFS, NFS, FTP, SMB3.0, SMB Direct (RDMA)
Block Access Protocols Leverages shared storage backend for block access
OS supported Microsoft Windows Storage Server 2016 Standard Edition
Internal RAID options Standard options: two HDDs for OS (RAID 1) or four HDD for OS (RAID 5)
PERC H730 (internal drives)
External RAID PERC H830 (optional)
Power
AC Power/Max Current Redundant and non-redundant hot-plug 750W PSU
Chassis
Bezel LCD Bezel with Quick Sync 2 (at-the-box management)
Dimensions Height: 42.8mm (1.68”)
Width: 482.0mm (18.98”, with rack ears)
Maximum Depth: 705.05mm
Maximum weight: 21.9 kg (48.28 lbs)
Availability Hot-plug hard drives, hot-plug redundant power, hot-plug redundant cooling, ECC memory
Cluster Support Yes, up to 64 nodes
Slots Three PCIe 3.0 slots (all x16 bandwidth)
Systems/Data Management
Management Dell OpenManage Essentials, iDRAC9 Enterprise
Data protection feature Replication (DFS-R), Snapshots (VSS)
Optional TPM 1.2/2.0
