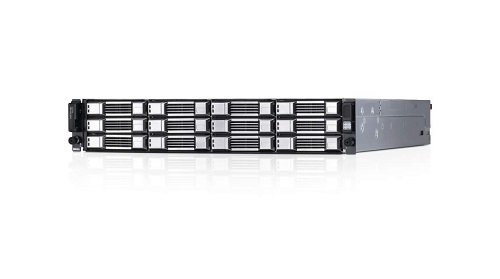

Dell Storage PS4210 10GbE iSCSI arrays increase performance and connectivity options for small- to mid-sized businesses.
With the latest software releases, PS and SC Series offer common management and cross-platform replication capabilities between arrays, allowing you to take advantage of new functionality while leveraging existing investments.
As part of the PS Series line, the Dell Storage PS4210 arrays provide tight integration in common application environments while offering:
Better performance—up to six times the performance with new hybrid-flash arrays compared to previous generation arrays
Dual 10GbE ports, twice as many ports as the previous generation
Support for server and desktop virtualization
|
PS4210E |
PS4210X |
PS4210XV |
|
Hard Disk Drives |
12 hot-pluggable 3.5" 7.2K NL-SAS |
24 hot-pluggable 2.5" 10K SAS |
|
Drive Capacities |
2TB, 3 TB, 4TB, 6TB |
600GB, 900GB, 1.2TB |
|
System Capacities |
Up to 72TB per array (up to 144TB with 2 arrays) |
Up to 28.8TB (up to 57.6TB with 2 arrays) |
|
RAID Support |
RAID 6, RAID 10, and RAID 50 |
RAID 6, RAID 10, and RAID 50 |
Storage Controller
Dual controllers with 16GB non-volatile memory (8GB per controller)with up to 32GB non-volatile memory in a group of 2 arrays
Network Interfaces
Management network: One 100BASE-TX per controller; 10GbE connectivity
Interface ports
Two 10GBASE-T with RJ45 or 2 x 10GbE SFP+ for fibre or twin-ax copper cabling
Snapshots
128 per volume / up to 2,048 total per group
Volume connections per PS series group
Up to 512 per pool / 1024 per group
Host Protocol
Any standards-compliant iSCSI initiator
Operating systems and hypervisors
Microsoft® Windows Server® including Hyper-V®
VMware® ESX Server
Red Hat® Enterprise Linux® (RHEL)
SUSE® Enterprise Linux® (SLES)
Oracle® Linux
Citrix® XenServer®
TCP Network Support
IPv4, IPv6 compliant. USGv6 certified.
Expansion option
Can be combined with other PS Series arrays in the same SAN group, online with a maximum of 16 total arrays per group that can support up to 2 PS4xxx arrays and 14 PS6xxx arrays. A maximum of two arrays can be in a group of PS4xxx series with up to 144TB. Additionally, PS and SC Series offer common management and cross-platform replication capabilities between arrays, providing PS Series customers the flexibility to add SC Series arrays to their environment, if and when they choose.
Reliability
Redundant hot-swappable controllers with vertical port sharing
Hot-swappable disks and power supplies
Enclosure Monitoring System
CHAP authentication; Access control lists for iSCSI as well as Access Control Policies; Access control for management interfaces including Active Directory, LDAP, or RADIUS support
Management Interfaces
Dell Storage Manager (DSM): Allows you to perform day-to-day tasks across SC and PS Series arrays from a single management interface
PS Series Group Manager
SAN Headquarters multi-group performance and event monitoring tool
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
Multi-administrator support
Security
CHAP authentication
Access control for iSCSI
Access control for management interfaces including RADIUS support
Notification Methods
SNMP traps, email, syslog
Power
AC voltage: 100-240 VAC +10% single phase
700W (max, total), +5V up to 155W; +12V up to 624W; +5Vsb up to 10W
Frequency: 50/60 Hz
Power factor: 0.98 (minimum)
Power supplies: Dual 700W
Environmental Operating Conditions
Temperature range: 5° to 40°C (41° to 104°F)
Storage temperature: –40° to 65°C (–40° to 149°F)
Altitude: For altitudes above 2950 feet, the maximum operating temperature is derated 1ºF/550 ft.
Operating Relative humidity: 20% to 80% (noncondensing) with a maximum humidity gradation of 10% per hour
Operational shock: Half-sine shock 31G +/- 5% with a pulse duration of 2.6ms +/- 10% in operational orientations only
Operating Vibration: 0.26 Grms (5 to 350 Hz) for 5 minutes in operational orientations
Acoustics Category 4: <=7.2 bels at 23C +/- 2C
Air Quality: Airborne contaminant level of G1 or lower as defined by ISA-S71.04-1985
Physical
Height: 2U/8.68 cm (3.41 in)
Width: 44.63 cm (17.57 in)
Depth: 59.4 cm (23.4 in)
Weight: 29.2 Kg (64.4 lb)
Dell support and optional storage service offerings
Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support are recommended to provide you the right support services for your PS Series solution. Contact your Dell representative today for more information.
